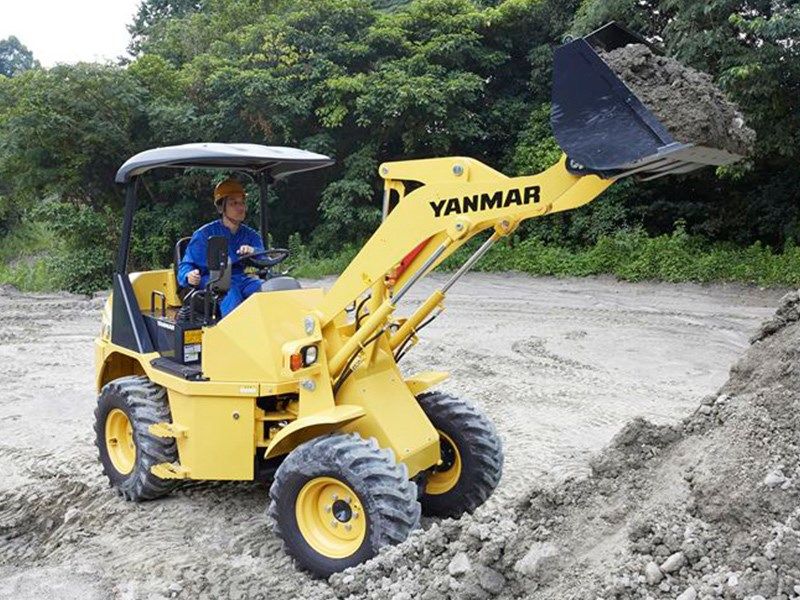

Yanmar V4-7
Browse All Yanmar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.94 ft in (2420 mm) |
| Bucket Capacity - Heaped | 0.65 yd3 (0.5 m3) |
| Breakout Force | 6092.33 lb (27.1 kN) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 14.52 ft in (4425 mm) |
| Width Over Tires | 5.55 ft in (1690 mm) |
| Height To Top Of Cab | 8.39 ft in (2555 mm) |
| Wheelbase | 6.17 ft in (1880 mm) |
| Hinge Pin - Max Height | 9.86 ft in (3005 mm) |
| Reach At Max Lift And Dump | 2.6 ft in (790 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | 4TNV88C-NKAH |
| Gross Power | 41 hp (30.5 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 133.6 cu in (2.2 L) |
| Aspiration | Water-cooled |
Operational
| Operating Weight | 8322 lb (3774.8 kg) |
| Static Tipping Weight | 6070 lb (2753.4 kg) |
| Turning Radius | 12.5 ft in (3810 mm) |
| Rear Axle Oscillation | 8 degrees |
| Tire Size | 15.5/60-18-8PR |
Transmission
| Transmission Type | Automatic Hydrostatic |
| Max Speed - Forward | 11.9 mph (19 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 14.8 gal/min (56 L/min) |
