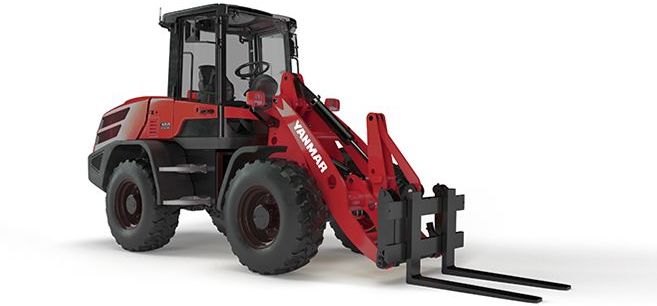

Yanmar V10
Browse All Yanmar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.65 ft in (2635 mm) |
| Bucket Capacity - Heaped | 1.31 yd3 (1.01 m3) |
| Bucket Width | 6.4 ft in (1950 mm) |
| Breakout Force | 12364.5 lb (55 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 17.29 ft in (5270 mm) |
| Width Over Tires | 6.07 ft in (1850 mm) |
| Height To Top Of Cab | 9.08 ft in (2765 mm) |
| Wheelbase | 7.29 ft in (2220 mm) |
| Hinge Pin - Max Height | 11.06 ft in (3370 mm) |
| Reach At Max Lift And Dump | 2.33 ft in (710 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 2.9 L4 |
| Net Power | 74 hp (55.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 300 Nm |
| Displacement | 177 cu in (3 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 12786.9 lb (5800 kg) |
| Fuel Capacity | 29 gal (109.8 L) |
| Hydraulic System Fluid Capacity | 23 gal (87.1 L) |
| Static Tipping Weight | 9634.3 lb (4370 kg) |
| Turning Radius | 14.6 ft in (4445 mm) |
| Operating Voltage | 12 V |
| Tire Size | 405/70 R 20 SPT 9 Dunlop |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 22.4 mph (36 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 19 gal/min (72 L/min) |
