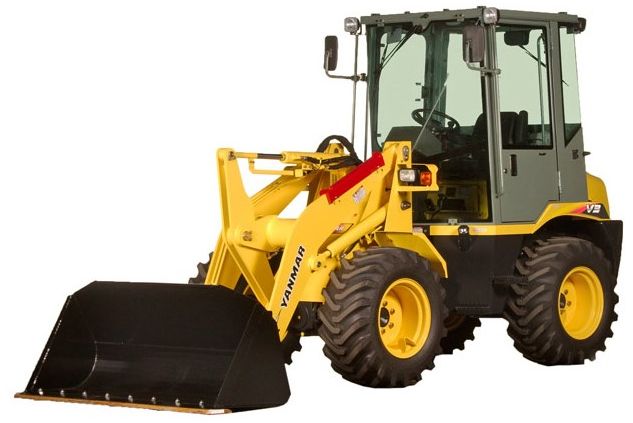

Yanmar V3-6
Browse All Yanmar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 6.99 ft in (2130 mm) |
| Bucket Capacity - Heaped | 0.53 yd3 (0.4 m3) |
Dimensions
| Length With Bucket On Ground | 13.18 ft in (4015 mm) |
| Width Over Tires | 5.55 ft in (1690 mm) |
| Height To Top Of Cab | 8.4 ft in (2560 mm) |
Engine
| Engine Make | 2348 |
| Engine Model | 3TNV88-BNKAH |
| Gross Power | 30.2 hp (22.6 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 100.2 cu in (1.7 L) |
Operational
| Operating Weight | 7154 lb (3245 kg) |
| Static Tipping Weight | 4785 lb (2170.5 kg) |
| Turning Radius | 11.8 ft in (3585 mm) |
| Rear Axle Oscillation | 8 degrees |
| Tire Size | 12.5/70-16-6PR |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 11.8 mph (19 km/h) |
| Max Speed - Reverse | 11.8 mph (19 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 10.7 gal/min (40.5 L/min) |
