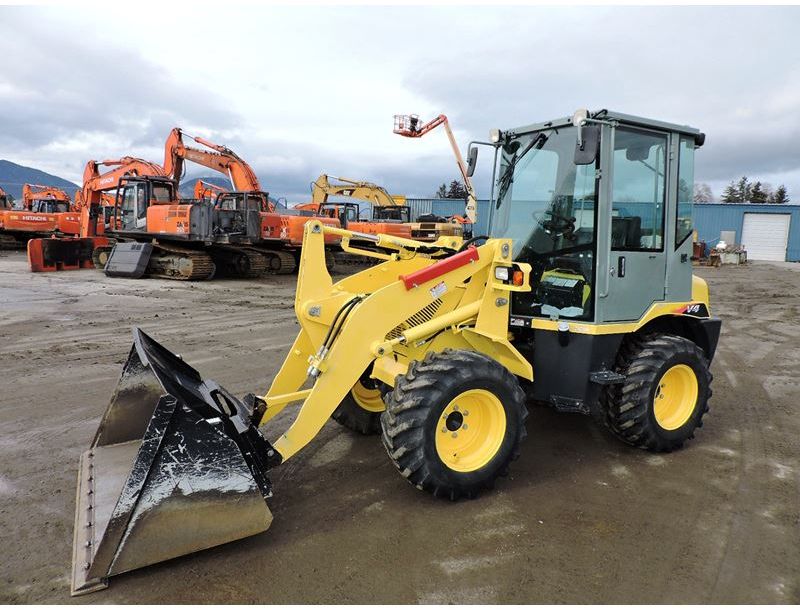

Yanmar V4-6
Browse All Yanmar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.94 ft in (2420 mm) |
| Bucket Capacity - Heaped | 0.66 yd3 (0.5 m3) |
Dimensions
| Ground Clearance | 0.99 ft in (300 mm) |
| Length With Bucket On Ground | 14.44 ft in (4400 mm) |
| Width Over Tires | 5.25 ft in (1600 mm) |
| Height To Top Of Cab | 8.4 ft in (2560 mm) |
Engine
| Engine Make | 2348 |
| Engine Model | 4TNV88-BNKAH |
| Gross Power | 40.4 hp (30.2 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 133.6 cu in (2.2 L) |
Operational
| Operating Weight | 8410.7 lb (3815 kg) |
| Static Tipping Weight | 5976 lb (2710.7 kg) |
| Turning Radius | 12.8 ft in (3875 mm) |
| Rear Axle Oscillation | 8 degrees |
| Tire Size | 15.5/60-18-8PR |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 11.8 mph (19 km/h) |
| Max Speed - Reverse | 11.8 mph (19 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 14.8 gal/min (56 L/min) |
