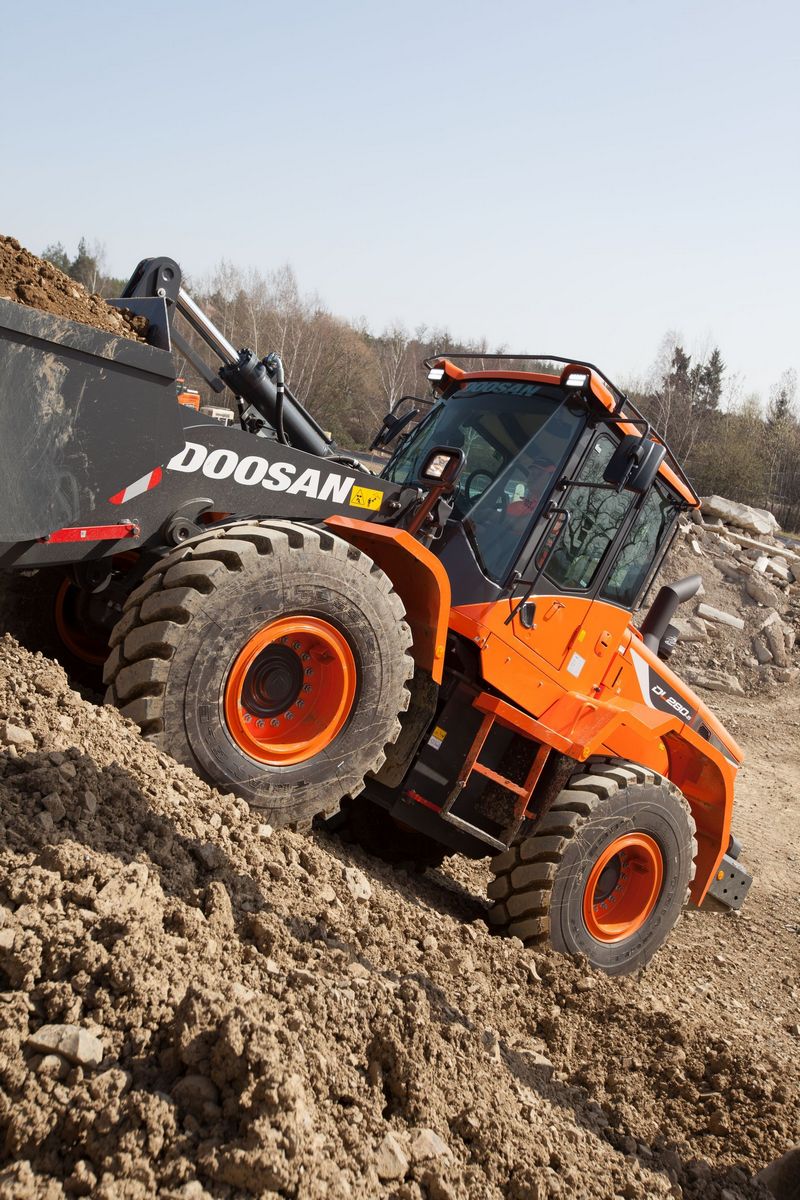

Doosan DL280-5
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 30349 lb (135 kN) |
| Bucket Capacity - Heaped | 3.67 yd3 (2.8 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
Dimensions
| Ground Clearance | 1.42 ft in (432 mm) |
| Width Over Tires | 8.44 ft in (2570 mm) |
| Wheelbase | 9.88 ft in (3010 mm) |
| Hinge Pin - Max Height | 12.93 ft in (3940 mm) |
| Overall Length | 303.15 in (7700 mm) |
| Tread Width | 80.32 in (2040 mm) |
Engine
| Starter | 8 hp (6 kw) |
| Number Of Cylinders | 6 |
| Max. Torque Iso14396 | 593 lb ft (804.1 Nm) |
| Engine Make | Doosan |
| Engine Model | DL06 |
| Air Cleaner | Double Element |
| Gross Power | 172 hp (128.3 kw) |
| Power Measured @ | 2100 rpm |
| Battery | 100 AH |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1400 rpm |
| Bore | 4 in (100 mm) |
| Stroke | 5 in (125 mm) |
| Alternator | 80 amps |
Operational
| Def Tank Capacity | 8.4 gal (31.5 L) |
| Operating Weight | 34262 lb (15541 kg) |
| Fuel Capacity | 58.7 gal (222 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Engine Oil Fluid Capacity | 7.2 gal (27 L) |
| Cooling System Fluid Capacity | 8.4 gal (31.6 L) |
| Transmission Fluid Capacity | 9.8 gal (37 L) |
| Front Axle/Diff Fluid Capacity | 9.3 gal (35 L) |
| Rear Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Static Tipping Weight | 26486 lb (12013.9 kg) |
| Operating Voltage | 24 V |
| Tire Size | 20.5-R25 (L3) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.1 mph (35.5 km/h) |
| Max Speed - Reverse | 15.1 mph (24.2 km/h) |
Hydraulic System
| Pump Flow Capacity | 55.5 gal/min (210 L/min) |
