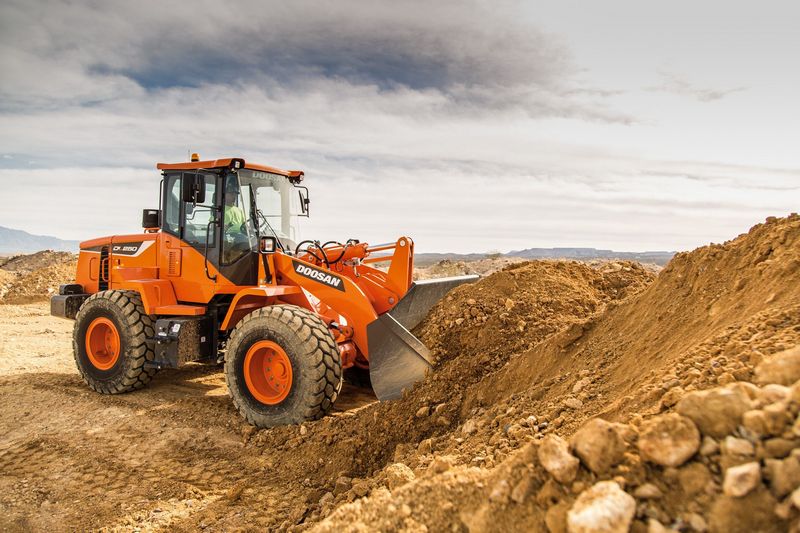

Doosan DL250-5
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 2429959.66 lb (10809 kN) |
| Bucket Capacity - Heaped | 3.27 yd3 (2.5 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Width Over Tires | 8.67 ft in (2640 mm) |
| Wheelbase | 9.91 ft in (3020 mm) |
| Hinge Pin - Max Height | 12.66 ft in (3858 mm) |
| Overall Length | 294.3 in (7475 mm) |
| Tread Width | 80.32 in (2040 mm) |
Engine
| Number Of Cylinders | 6 |
| Max. Torque Iso14396 | 593 lb ft (804.1 Nm) |
| Engine Make | Doosan |
| Engine Model | DL06 |
| Gross Power | 172 hp (128.3 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1400 rpm |
| Bore | 4 in (100 mm) |
| Stroke | 5 in (125 mm) |
| Alternator | 80 amps |
Operational
| Def Tank Capacity | 8.4 gal (31.5 L) |
| Operating Weight | 30115.2 lb (13660 kg) |
| Fuel Capacity | 58.7 gal (222 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Engine Oil Fluid Capacity | 7.2 gal (27 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 9.3 gal (35 L) |
| Rear Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Static Tipping Weight | 21230.6 lb (9630 kg) |
| Operating Voltage | 24 V |
| Tire Size | 20.5-R25 (L3) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.5 mph (37.8 km/h) |
| Max Speed - Reverse | 15.1 mph (24.2 km/h) |
