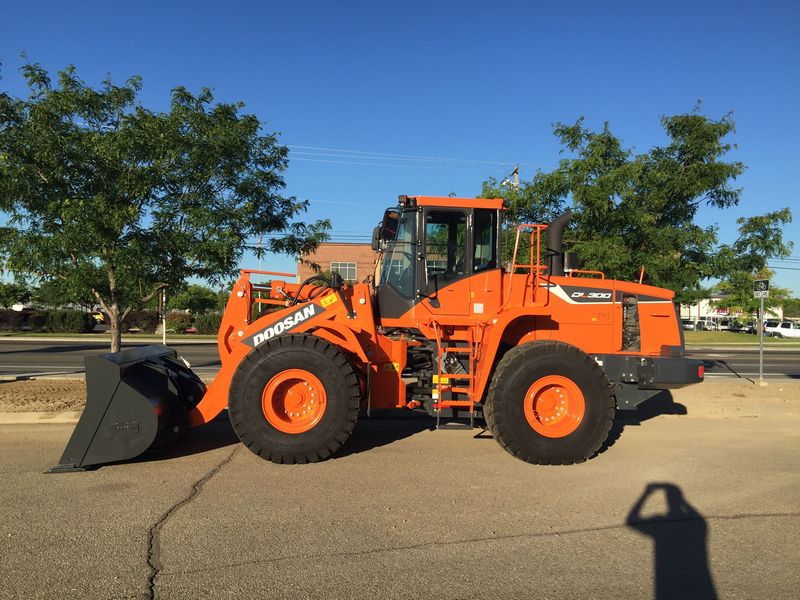

Doosan DL300-5
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 4.19 yd3 (3.2 m3) |
| Bucket Width | 9.6 ft in (2926.08 mm) |
| Breakout Force | 37768 lb (168.01 kN) |
Dimensions
| Ground Clearance | 1.6 ft in (487.68 mm) |
| Wheelbase | 10.5 ft in (3200.4 mm) |
| Hinge Pin - Max Height | 13 ft in (3962.4 mm) |
| Reach At Max Lift And Dump | 3.9 ft in (1188.72 mm) |
| Overall Height | 11.4 ft in (3474.72 mm) |
| Overall Length | 26.6 ft in (8107.68 mm) |
| Gradeability | 51 % |
Engine
| Starter | 8 hp (6 kw) |
| Horsepower -Net | 271 hp (202.1 kw) |
| Number Of Cylinders | 5 |
| Engine Make | Scania |
| Engine Model | DC09 |
| Gross Power | 271 hp (202.1 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 567.6 cu in (9.3 L) |
| Net Torque | 940 lb ft (1274.5 Nm) |
| Torque Measured @ | 1400 rpm |
| Bore | 5.2 in (130 mm) |
| Stroke | 5.6 in (140 mm) |
| Alternator | 100 amps |
Capacities
| Fuel Tank | 64 gal (242.3 L) |
| Diesel Exhaust Fluid (Def) Tank | 10 gal (37.9 L) |
| Cooling System | 13 gal (49.3 L) |
| Transmission | 14 gal (53 L) |
| Hydraulic System | 45.7 gal (173 L) |
| Engine Oil | 9 gal (34.1 L) |
Operational
| Operating Weight | 41844 lb (18980.2 kg) |
| Front Axle/Diff Fluid Capacity | 11 gal (41.7 L) |
| Rear Axle/Diff Fluid Capacity | 11 gal (41.7 L) |
| Operating Voltage | 28 V |
| Rear Axle Oscillation | 24 degrees |
Transmission
| Max Speed - Forward | 3.9 mph (6.2 km/h) |
Hydraulic System
| Maxpumpflow | 38.3 gal/min (145 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 3.2 sec |
| Lower Time | 1.4 sec |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
