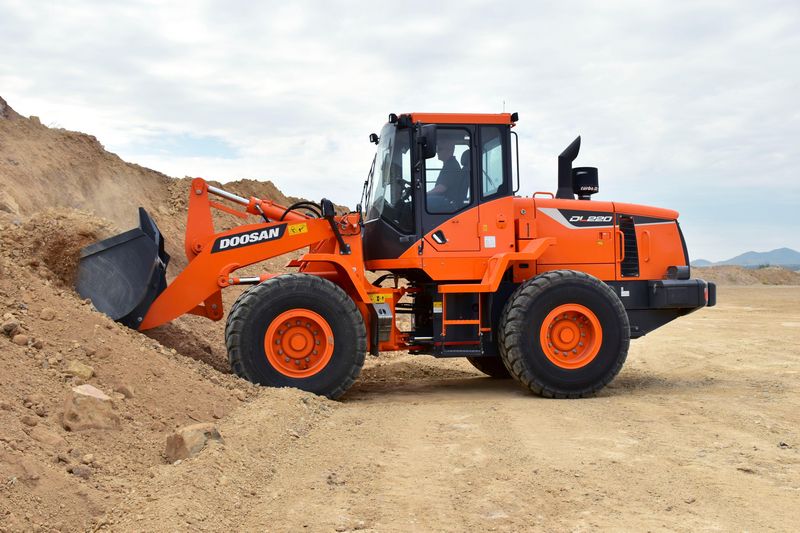

Doosan DL220-5
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 2315307.11 lb (10299 kN) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Width Over Tires | 8.08 ft in (2460 mm) |
| Wheelbase | 9.88 ft in (3010 mm) |
| Hinge Pin - Max Height | 12.67 ft in (3860 mm) |
| Overall Length | 293.12 in (7445 mm) |
| Tread Width | 75.99 in (1930 mm) |
Engine
| Number Of Cylinders | 6 |
| Max. Torque Iso14396 | 542 lb ft (734.9 Nm) |
| Engine Make | Doosan |
| Engine Model | DL06 |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1400 rpm |
| Bore | 4 in (100 mm) |
| Stroke | 5 in (125 mm) |
| Alternator | 80 amps |
Operational
| Def Tank Capacity | 8.4 gal (31.5 L) |
| Operating Weight | 27381.5 lb (12420 kg) |
| Fuel Capacity | 58.7 gal (222 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Engine Oil Fluid Capacity | 7.2 gal (27 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 5.7 gal (21.5 L) |
| Rear Axle/Diff Fluid Capacity | 5.7 gal (21.5 L) |
| Static Tipping Weight | 21230.6 lb (9630 kg) |
| Operating Voltage | 24 V |
| Tire Size | 20.5-R25 (L3) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
