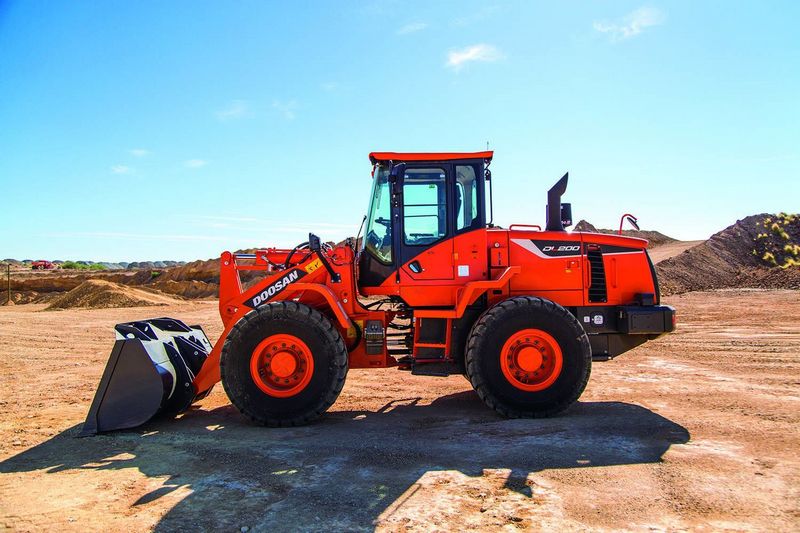

Doosan DL200
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.96 ft in (2730 mm) |
| Bucket Capacity - Heaped | 2.49 yd3 (1.9 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
| Breakout Force | 23149 lb (23149 -) |
Dimensions
| Ground Clearance | 1.46 ft in (445 mm) |
| Length With Bucket On Ground | 23.91 ft in (7285 mm) |
| Width Over Tires | 8.08 ft in (2460 mm) |
| Height To Top Of Cab | 10.63 ft in (3240 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 12.57 ft in (3830 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2252 |
| Engine Model | DL06 |
| Net Power | 137 hp (102.2 kw) |
| Gross Power | 143 hp (106.7 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 506 lb ft (686 Nm) |
| Displacement | 360 cu in (5.9 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbo compressor and air to air cooling |
Operational
| Operating Weight | 25673 lb (11645.1 kg) |
| Fuel Capacity | 64.2 gal (243 L) |
| Hydraulic System Fluid Capacity | 30.4 gal (115 L) |
| Engine Oil Fluid Capacity | 7.2 gal (27 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 5.2 gal (19.4 L) |
| Rear Axle/Diff Fluid Capacity | 4.9 gal (18.4 L) |
| Static Tipping Weight | 19555.1 lb (8870 kg) |
| Turning Radius | 17.1 ft in (5210 mm) |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.8 mph (35 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Relief Valve Setting | 2900.8 psi (20000 kPa) |
| Pump Flow Capacity | 23.3 gal/min (88 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.1 sec |
| Lower Time | 4.1 sec |
| Pump Type | gear type |
