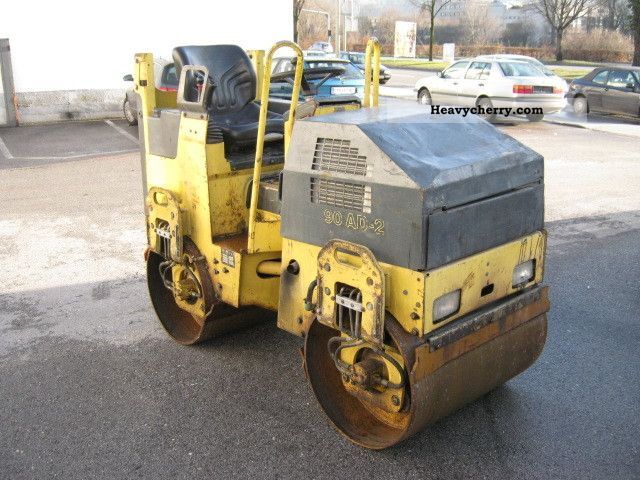

Bomag BW90AD2
Contents:
| Overall Length | 6.11 in (1862 mm) |
| Height To Top Of Cab | 7.55 ft in (2300 mm) |
| Wheelbase | 4.21 in (1282 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D 722 B |
| Gross Power | 15.9 hp (11.9 kw) |
| Power Measured @ | 3000 rpm |
| Operating Weight | 3351.1 lb (1520 kg) |
| Fuel Capacity | 6.1 gal (23 L) |
| Max Speed | 5 mph (8 km/h) |
| Operating Voltage | 12 V |
| Drum Width | 35.5 in (900 mm) |
| Drum Diameter | 22.9 in (580 mm) |
| Static Linear Load | 47.1 lb/in (8.4 kg/cm) |
| Vibration Frequency 1 | 60 Hz |
| Nominal Amplitude - Med | 0.1 in (0.5 mm) |
| Centrifugal Force - Med | 3372.2 lb (15 kN) |
