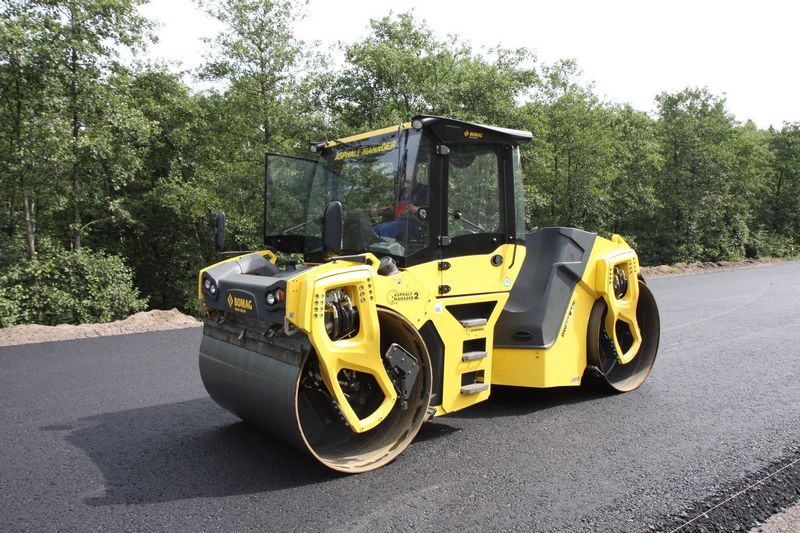

Bomag BW190AD4HF
Contents:
| Overall Length | 177.96 in (4520 mm) |
| Overall Width | 7.09 ft in (2160 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Wheelbase | 129.93 in (3300 mm) |
| Ground Clearance | 13.78 in (350 mm) |
| Drum Diameter - Front | 4.01 ft in (1220 mm) |
| Drum Diameter - Rear | 4.01 ft in (1220 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | TCD 2012 L04 |
| Gross Power | 134 hp (100 kw) |
| Power Measured @ | 2300 rpm |
| Operating Weight | 26014.6 lb (11800 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Engine Oil Capacity | 2.6 gal (9.5 L) |
| Max Speed | 7.1 mph (11.3 km/h) |
| Operating Voltage | 12 V |
| Drum Width | 78.8 in (2000 mm) |
| Drum Diameter | 48.1 in (1220 mm) |
| Static Linear Load | 161 lb/in (28.8 kg/cm) |
| Vibration Frequency 1 | 48 Hz |
| Nominal Amplitude - Med | 0.1 in (0.9 mm) |
| Vibration Frequency 2 | 60 Hz |
| Centrifugal Force - Med | 28775.6 lb (128 kN) |
