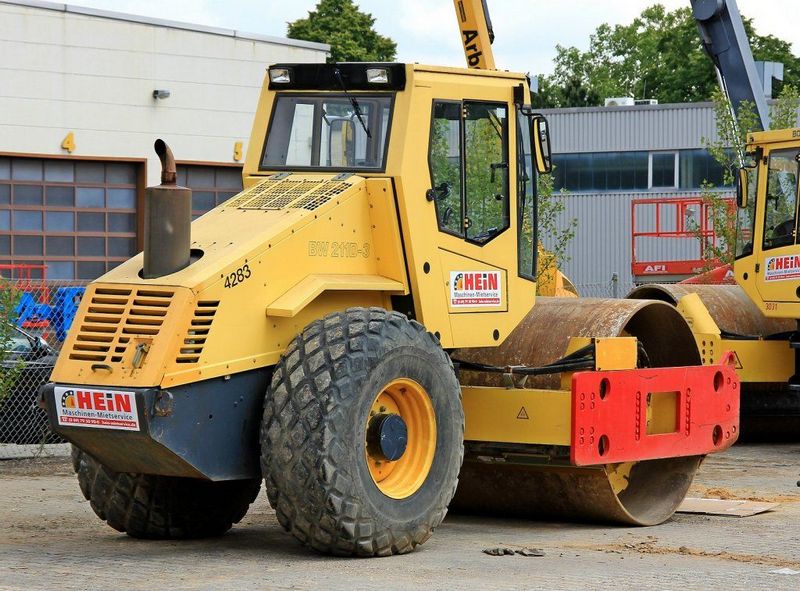

Bomag BW211D3
Contents:
| Overall Length | 18.41 in (5610 mm) |
| Overall Width | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 9.75 ft in (2970 mm) |
| Wheelbase | 9.41 in (2868 mm) |
| Ground Clearance | 19.3 in (490 mm) |
| Drum Diameter - Front | 4.93 ft in (1500 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M2012C |
| Gross Power | 131.5 hp (98 kw) |
| Power Measured @ | 2300 rpm |
| Operating Weight | 22928.1 lb (10400 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Max Speed | 8.4 mph (13.5 km/h) |
| Tires *If Applicable | 23.1/18-26/8PR |
| Operating Voltage | 12 V |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 413.9 lb/in (29.1 kg/cm) |
| Vibration Frequency 1 | 30 Hz |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 36 Hz |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 53055 lb (236 kN) |
| Centrifugal Force - Low | 38217.6 lb (170 kN) |
