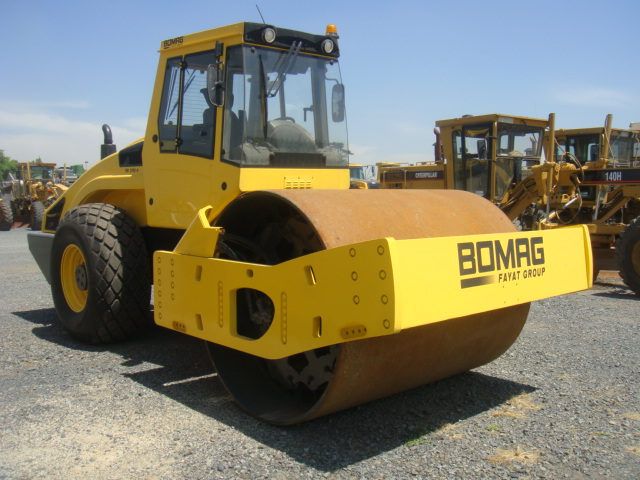

Bomag BW219PD-2
Contents:
| Overall Length W/O Blade | 19.76 ft in (6020 mm) |
| Width Over Tires | 6.89 ft in (2100 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Wheelbase | 10.19 in (3105 mm) |
| Ground Clearance | 19.69 in (500 mm) |
| Drum Diameter | 59.06 in (1500 mm) |
| Number Of Pads | 150 |
| Nominal Amplitude - High | 0.07 in (1.62 mm) |
| Centrifugal Force - High | 70972.18 lb (315.7 kN) |
| Pad Surface Area | 22.17 in2 (14300 cm2) |
| Vibration Frequency 1 | 29 Hz |
| Number Of Cylinders | 6 |
| Engine Make | 2349 |
| Engine Model | BF6L913 |
| Gross Power | 169.6 hp (126.5 kw) |
| Net Power | 160.5 hp (119.7 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | natural |
| Operating Weight | 42937.3 lb (19476 kg) |
| Fuel Capacity | 87.2 gal (330 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires | 23.1/18-26/8PR |
| Operating Voltage | 12 V |
