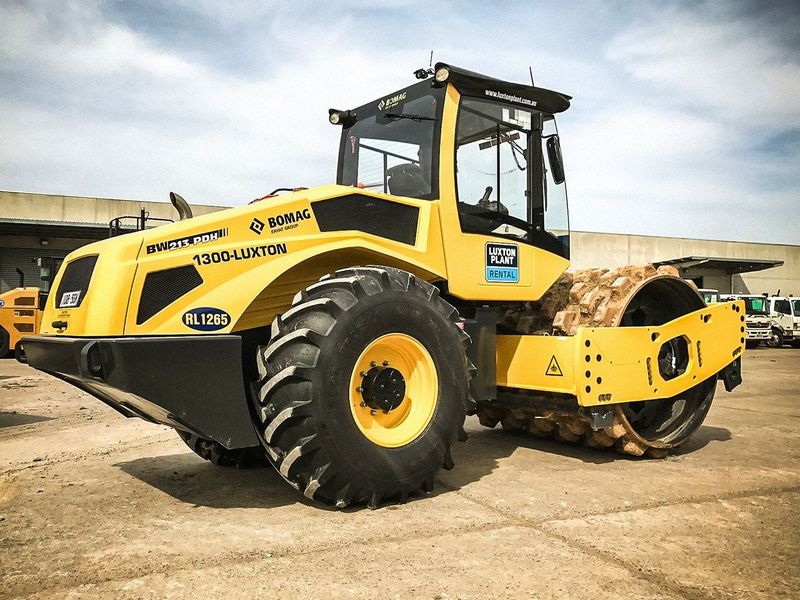

Bomag BW213PDH-2
Contents:
| Overall Length W/O Blade | 18.84 ft in (5740 mm) |
| Width Over Tires | 6.89 ft in (2100 mm) |
| Height To Top Of Cab | 10.83 ft in (3300 mm) |
| Wheelbase | 10.18 in (3100 mm) |
| Ground Clearance | 15.75 in (400 mm) |
| Drum Diameter | 59.06 in (1500 mm) |
| Number Of Pads | 150 |
| Nominal Amplitude - High | 0.06 in (1.5 mm) |
| Centrifugal Force - High | 51706.06 lb (230 kN) |
| Pad Surface Area | 22.17 in2 (14300 cm2) |
| Vibration Frequency 1 | 30 Hz |
| Number Of Cylinders | 6 |
| Engine Make | 2349 |
| Engine Model | BF6L 913 |
| Gross Power | 167.3 hp (124.7 kw) |
| Net Power | 158.3 hp (118 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | natural |
| Operating Weight | 27070.6 lb (12279 kg) |
| Fuel Capacity | 51.6 gal (195 L) |
| Max Speed | 3.2 mph (5 km/h) |
| Tires | 23.1/18-26/8PR |
| Operating Voltage | 12 V |
