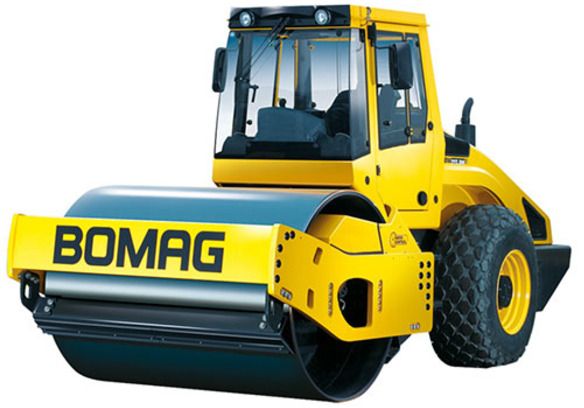

Bomag BW213DH3
Contents:
| Overall Length | 18.41 in (5610 mm) |
| Height To Top Of Cab | 9.75 ft in (2970 mm) |
| Wheelbase | 9.41 in (2868 mm) |
| Ground Clearance | 19.3 in (490 mm) |
| Drum Diameter - Front | 4.93 ft in (1500 mm) |
| Engine Make | 2347 |
| Engine Model | 6B5.9 QSB-155C |
| Gross Power | 155.6 hp (116 kw) |
| Power Measured @ | 2200 rpm |
| Operating Weight | 27403.5 lb (12430 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tires *If Applicable | 23.1/18-26/8PR |
| Operating Voltage | 12 V |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 465.2 lb/in (32.7 kg/cm) |
| Vibration Frequency 1 | 30 Hz |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 36 Hz |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 61822.5 lb (275 kN) |
| Centrifugal Force - Low | 44512.2 lb (198 kN) |
