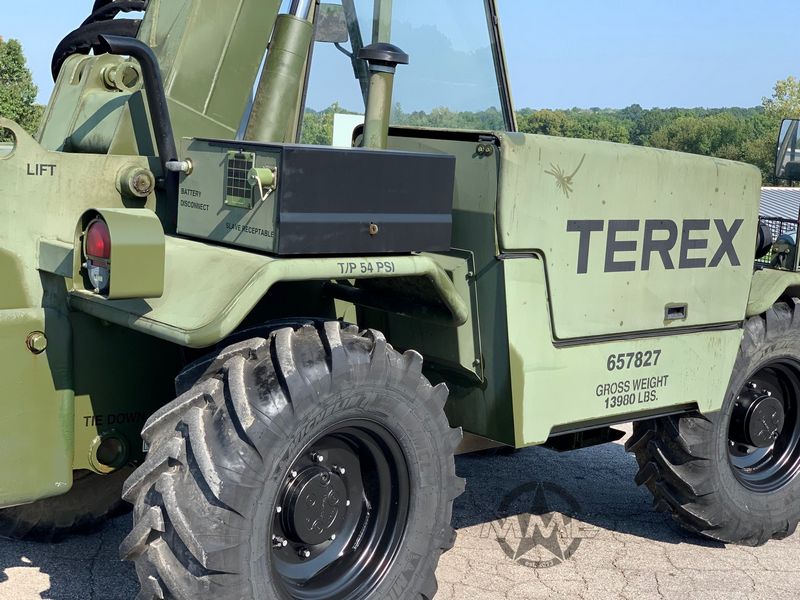

Terex TX5119
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Overall Height | 6.4 ft in (1950.72 mm) |
| Overall Length | 12.3 in (3749.04 mm) |
| Overall Width | 5.12 ft in (1557.53 mm) |
| Turning Radius Outside Tires | 11 ft in (3352.8 mm) |
Engine
| Number Of Cylinders | 4 |
| Net Power | 63 hp (47 kw) |
| Aspiration | Natural |
Operational
| Operating Weight | 9480 lb (4300.1 kg) |
| Fuel Capacity | 15.8 gal (59.9 L) |
| Cooling System Fluid Capacity | 2.6 gal (9.9 L) |
| Tire Size | 12 X 16.5-18PR |
Transmission
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 15 mph (24.2 km/h) |
