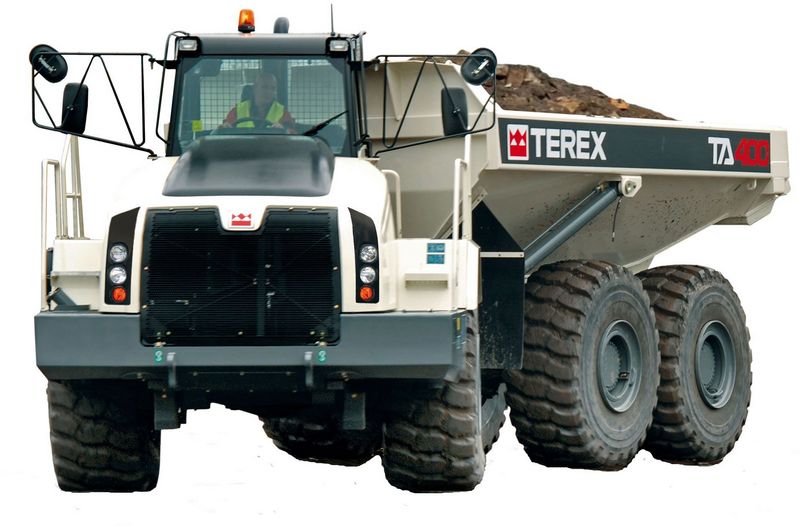

Terex TA400
Contents:
| Overall Length | 36.4 ft in (11094.72 mm) |
| Overall Width | 11.3 ft in (3444.24 mm) |
| Overall Height | 12.3 ft in (3749.04 mm) |
| Wheelbase | 31.9 ft in (9723.13 mm) |
| Dump Angle | 66 degrees |
| Lower Time | 20.5 sec |
| Capacity - Struck | 22.8 yd3 (17.44 m3) |
| Capacity - Heaped | 30.3 yd3 (23.17 m3) |
| Raise Time | 20.5 sec |
| Rated Payload | 41.9 lb (19.01 kg) |
| Engine Make | 2246 |
| Engine Model | Scania DC13 |
| Net Power | 444 hp (331.1 kw) |
| Max Torque | 1663 lb ft (2254.8 Nm) |
| Fuel Capacity | 130.5 gal (494 L) |
| Tire Size | 29.5 |
| Transmission Type | Auto |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed | 41.7 mph (67.2 km/h) |
| Total Empty | 69203 lb (31390 kg) |
| Total Loaded | 152978 lb (69389.7 kg) |
