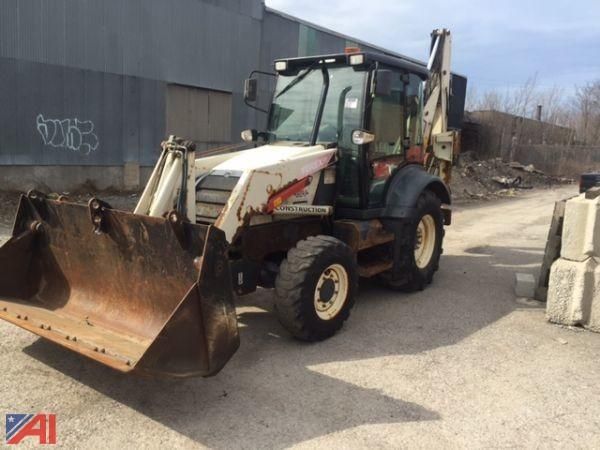

Terex TX750
Browse All Terex or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.3 ft in (3749.04 mm) |
| Reach From Swivel - Std | 19.26 ft in (5870 mm) |
| Dig Depth - Std | 14.64 ft in (4460 mm) |
| Reach At Load Height - Std | 6.1 ft in (1859.28 mm) |
| Load Height - Ext | 15.6 ft in (4754.88 mm) |
| Bucket Dig Force - Std | 10082 lb (4573.12 kg) |
| Dig Depth - Ext | 19.23 ft in (5860 mm) |
| Reach From Swivel - Ext | 23.43 ft in (7140 mm) |
| Reach At Load Height - Ext | 9.2 ft in (2804.16 mm) |
Dimensions
| Transport Length | 23.8 ft in (7254.24 mm) |
| Transport Width | 7.7 ft in (2346.96 mm) |
| Transport Height | 12.3 ft in (3749.04 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Height To Top Of Suspended Cab | 9 ft in (2743.2 mm) |
Loader
| Clearance At Max Dump Height | 8.8 ft in (2680 mm) |
| Reach At Max Dump Height | 2.12 ft in (645 mm) |
| Dig Depth | 7.33 in (186 mm) |
| Bucket Breakout Force | 10485 lb (46.64 kN) |
| Bucket Width | 90.95 in (2310 mm) |
| Bucket Capacity | 1.32 yd3 (1.01 m3) |
| Lift Capacity At Full Height | 7604 lb (3449.12 kg) |
Engine
| Engine Make | PERKINS |
| Engine Model | Model 1 1004-40 T |
| Net Power | 69 hp (51.5 kw) |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 212 lb ft (287.5 Nm) |
| Displacement | 256.3 cu in (4.2 L) |
Operational
| Fuel Capacity | 31.8 gal (120 L) |
| Max Weight | 15820 lb (7175.9 kg) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Oil System Fluid Capacity | 2.9 gal (10.7 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 4 gal (15 L) |
| Front Axle Fluid Capacity | 4.7 gal (17.5 L) |
| Rear Axle Fluid Capacity | 3.4 gal (12.5 L) |
| Tire Size Front - 2wd / 4wd | 11Lx16 |
| Rear Tires Size 2wd/4wd | 16.9x28 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.5 mph (39.4 km/h) |
| Max Speed Reverse | 24.5 mph (39.4 km/h) |
Hydraulic
| Pump Flow Capacity | 21 gal/min (79.5 L/min) |
| Relief Valve Pressure | 3250 psi (22408 kPa) |
