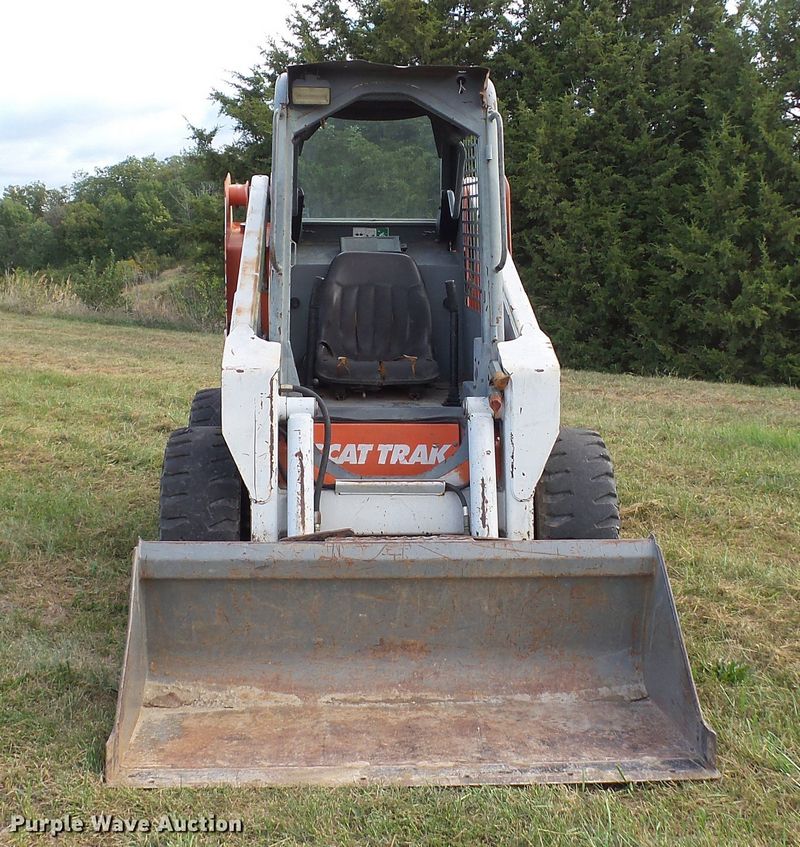

Scat Trak 1300D
Browse All Scat Trak or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.8 ft in (3289 mm) |
| Width Over Tires | 4.96 ft in (1511 mm) |
| Ground Clearance | 7.6 in (193 mm) |
| Height To Top Of Cab | 6.48 ft in (1974 mm) |
| Wheelbase | 3.05 ft in (927 mm) |
| Length W/O Bucket | 8.53 ft in (2597 mm) |
| Clearance At Max Lift And Dump | 7.42 ft in (2261 mm) |
| Reach At Max Lift And Dump | 24.02 in (610 mm) |
| Turning Radius From Center - Machine Rear | 62.21 in (1580 mm) |
| Turning Radius From Center - Inc Bucket | 74.02 in (1880 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2203-E |
| Gross Power | 49.5 hp (37 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operational Weight | 5404 lb (2451.3 kg) |
| Fuel Capacity | 17.4 gal (65.5 L) |
| Hydraulic System Fluid Capacity | 10 gal (37.8 L) |
| Max Speed | 6.4 mph (10.3 km/h) |
| Tire Size | 10x16.5 |
| Operating Voltage | 12 V |
Loader
| Operating Load Rating | 1350 lb (612.4 kg) |
| Tipping Angle | 2700 degrees |
Hydraulic
| Pump Flow Capacity | 16.4 gal/min (62 L/min) |
