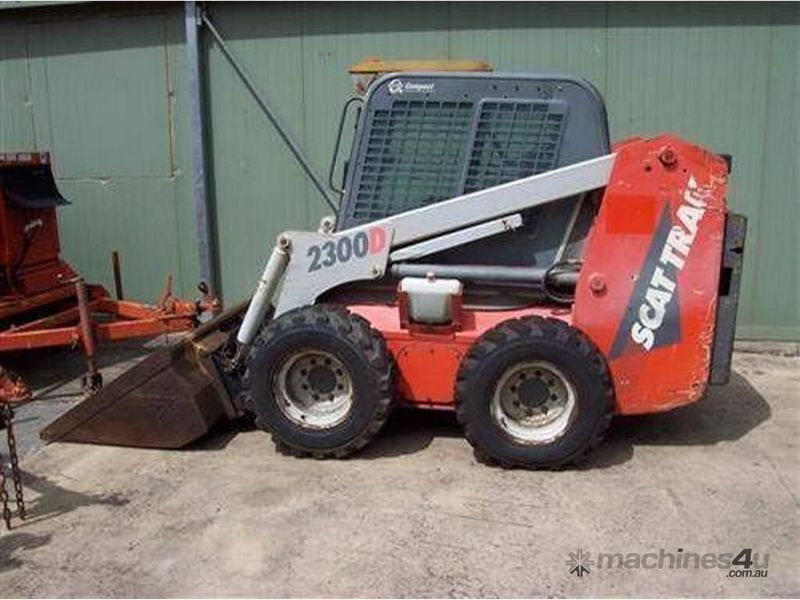

Scat Trak 2300D
Browse All Scat Trak or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.74 ft in (3576 mm) |
| Width Over Tires | 5.99 ft in (1824 mm) |
| Ground Clearance | 7.41 in (188 mm) |
| Height To Top Of Cab | 6.71 ft in (2045 mm) |
| Wheelbase | 3.62 ft in (1102 mm) |
| Length W/O Bucket | 9.34 ft in (2845 mm) |
| Clearance At Max Lift And Dump | 7.85 ft in (2390 mm) |
| Reach At Max Lift And Dump | 24.22 in (615 mm) |
| Turning Radius From Center - Machine Rear | 65.99 in (1676 mm) |
| Turning Radius From Center - Inc Bucket | 52.52 in (1334 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004.42 |
| Gross Power | 86 hp (64.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 258 cu in (4.3 L) |
Operational
| Operational Weight | 7675 lb (3481.4 kg) |
| Fuel Capacity | 22.6 gal (85.2 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Operating Speed | 6.3 mph (10.1 km/h) |
| Tire Size | 12.00x16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Loader
| Operating Load Rating | 2450 lb (1111.4 kg) |
| Tipping Angle | 4900 degrees |
Hydraulic
| Pump Flow Capacity | 22 gal/min (83.3 L/min) |
