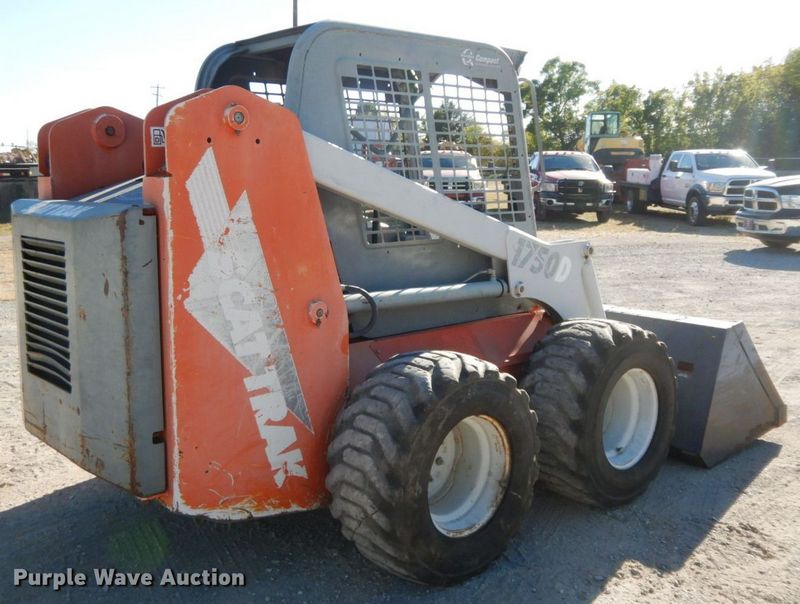

Scat Trak 1750D
Browse All Scat Trak or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.49 ft in (3500 mm) |
| Width Over Tires | 5.99 ft in (1824 mm) |
| Ground Clearance | 7.09 in (180 mm) |
| Height To Top Of Cab | 6.67 ft in (2032 mm) |
| Wheelbase | 3.34 ft in (1016 mm) |
| Length W/O Bucket | 9.09 ft in (2769 mm) |
| Clearance At Max Lift And Dump | 7.84 ft in (2388 mm) |
| Reach At Max Lift And Dump | 24.22 in (615 mm) |
| Turning Radius From Center - Machine Rear | 64.02 in (1626 mm) |
| Turning Radius From Center - Inc Bucket | 50.52 in (1283 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004.42 |
| Gross Power | 86 hp (64.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 258 cu in (4.3 L) |
Operational
| Operational Weight | 6980 lb (3166.1 kg) |
| Fuel Capacity | 21.6 gal (81.7 L) |
| Max Speed | 6.1 mph (9.7 km/h) |
| Hydraulic System Fluid Capacity | 17.1 gal (64.7 L) |
| Tire Size | 12.00x16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Loader
| Operating Load Rating | 1875 lb (850.5 kg) |
| Tipping Angle | 3750 degrees |
Hydraulic
| Pump Flow Capacity | 19.1 gal/min (72 L/min) |
