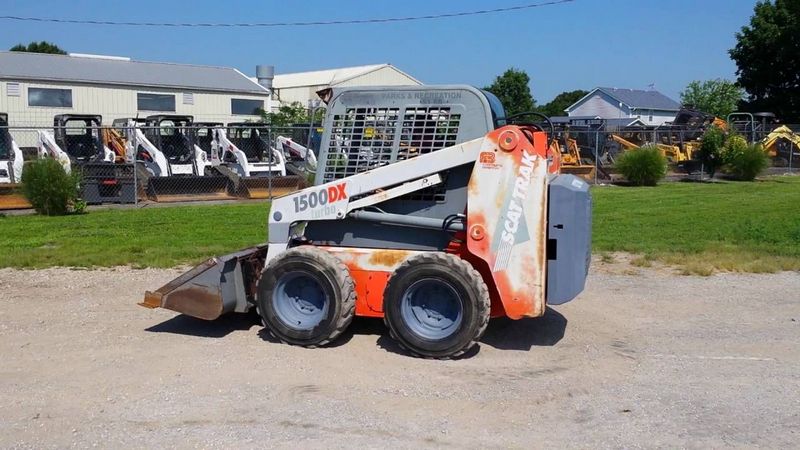

Scat Trak 1500DX
Browse All Scat Trak or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.8 ft in (3289 mm) |
| Width Over Tires | 5.42 ft in (1651 mm) |
| Ground Clearance | 8 in (203 mm) |
| Height To Top Of Cab | 6.5 ft in (1981 mm) |
| Wheelbase | 3.34 ft in (1016 mm) |
| Length W/O Bucket | 8.53 ft in (2598 mm) |
| Clearance At Max Lift And Dump | 7.49 ft in (2281 mm) |
| Reach At Max Lift And Dump | 24.02 in (610 mm) |
| Turning Radius From Center - Machine Rear | 60.52 in (1537 mm) |
| Turning Radius From Center - Inc Bucket | 77.01 in (1956 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2003-TE |
| Gross Power | 60 hp (44.8 kw) |
| Power Measured @ | 2800 rpm |
| Aspiration | turbocharged |
| Displacement | 122 cu in (2 L) |
Operational
| Operational Weight | 5957 lb (2702.1 kg) |
| Fuel Capacity | 17.4 gal (65.5 L) |
| Hydraulic System Fluid Capacity | 10 gal (37.8 L) |
| Max Speed | 6.9 mph (11.1 km/h) |
| Tire Size | 10.00x16.5 |
| Operating Voltage | 12 V |
Loader
| Operating Load Rating | 1500 lb (680.4 kg) |
| Tipping Angle | 3000 degrees |
Hydraulic
| Pump Flow Capacity | 31 gal/min (117 L/min) |
| Relief Valve Pressure | 2500 psi (17236.9 kPa) |
