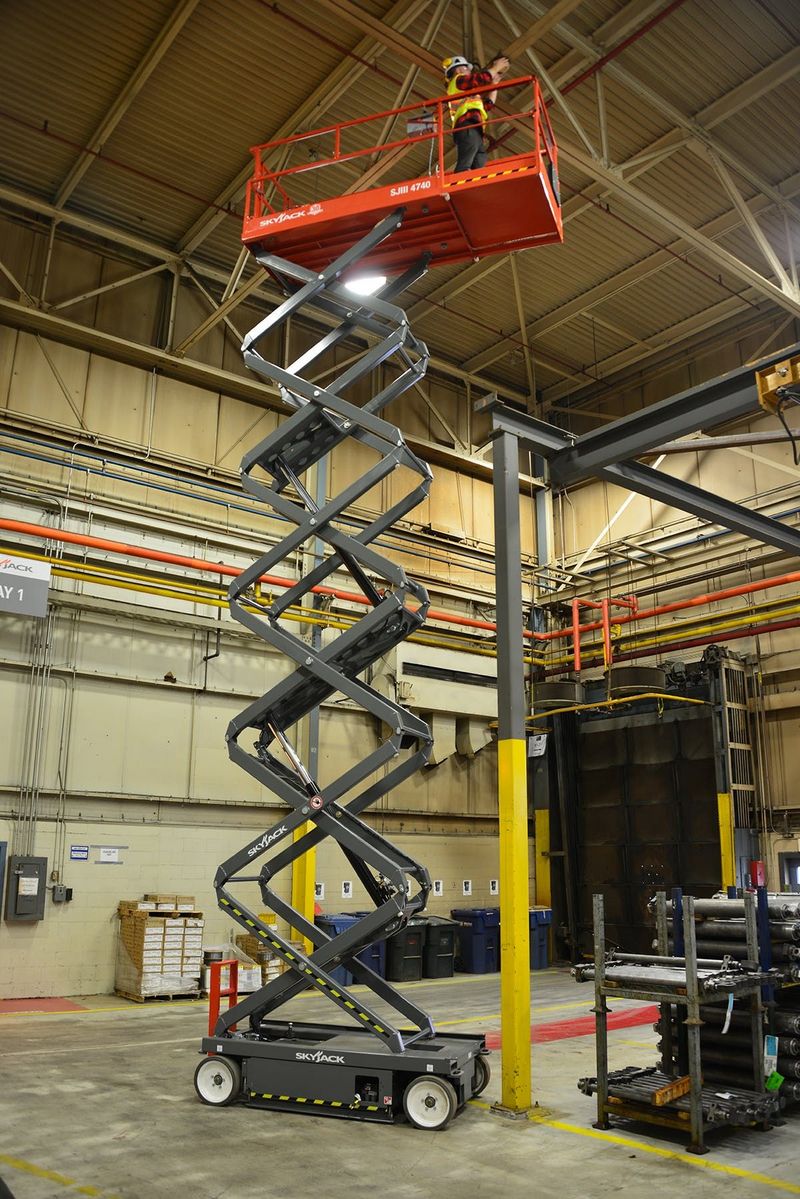

Skyjack SJIII 4740
Browse All Skyjack or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 94.49 in (2400 mm) |
| Wheelbase | 6.07 ft in (1850 mm) |
| Overall Width | 3.91 ft in (1190 mm) |
| Height W/ Rails | 8.17 ft in (2490 mm) |
| Ground Clearance | 3.19 in (81 mm) |
| Height W/O Rails | 6.53 ft in (1990 mm) |
| Turning Radius | 8.47 ft in (2580 mm) |
| Gradeability | 25 % |
Platform
| Max Platform Height | 3.94 ft in (1200 mm) |
| Deck Extension | 35.44 in (900 mm) |
| Max Working Height | 45.28 ft in (13800 mm) |
| Platform Height - Lowered | 4494.76 ft in (1370 m) |
| Platform Inner Length | 86.23 in (2190 mm) |
| Platform Inner Width | 41.74 in (1060 mm) |
| Lower Time | 41 sec |
| Lift Time | 71 sec |
Engine
| System Voltage | 24 V |
Operational
| Load Capacity | 500.5 lb (227 kg) |
| Operating Weight | 7480.3 lb (3393 kg) |
| Max Speed | 2 mph (3.2 km/h) |
| Tire Size | 16 x 5 x 12 |
| Tire Fill/Type | Solid, N/M |
