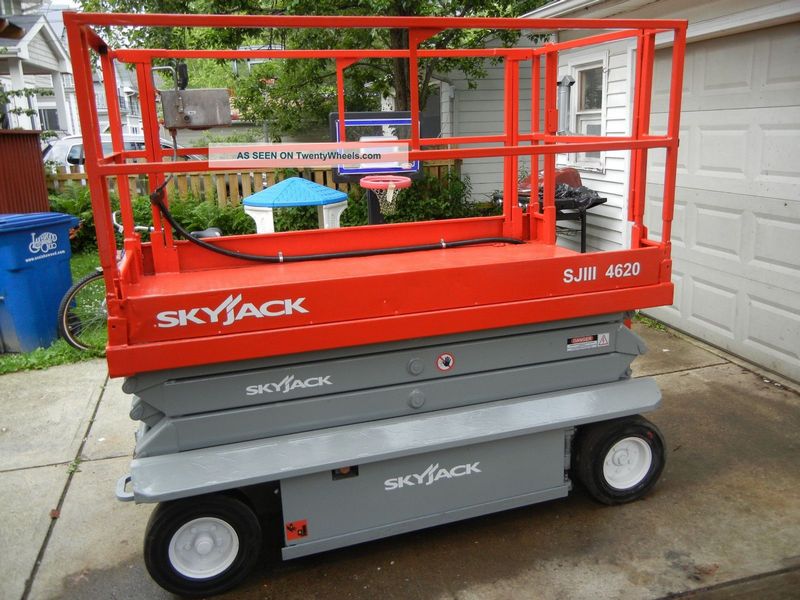

Skyjack SJIII 4620
Browse All Skyjack or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 7.55 in (2300 mm) |
| Wheelbase | 5.91 ft in (1800 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Height W/ Rails | 6.57 ft in (2000 mm) |
| Ground Clearance | 3.51 in (89 mm) |
| Height W/O Rails | 5.25 ft in (1600 mm) |
| Turning Radius | 7.88 ft in (2400 mm) |
Platform
| Max Platform Height | 20.02 ft in (6100 mm) |
| Deck Extension | 47.25 in (1200 mm) |
| Max Working Height | 25.92 ft in (7900 mm) |
| Platform Inner Length | 82.68 in (2100 mm) |
| Platform Inner Width | 43.31 in (1100 mm) |
| Max Platform Weight Capacity | 1300.73 lb (590 kg) |
| Lift Time | 32 sec |
Engine
| Engine Make | 0 |
| System Voltage | 24 V |
Operational
| Operating Weight | 4100.6 lb (1860 kg) |
| Max Speed | 2 mph (3.2 km/h) |
