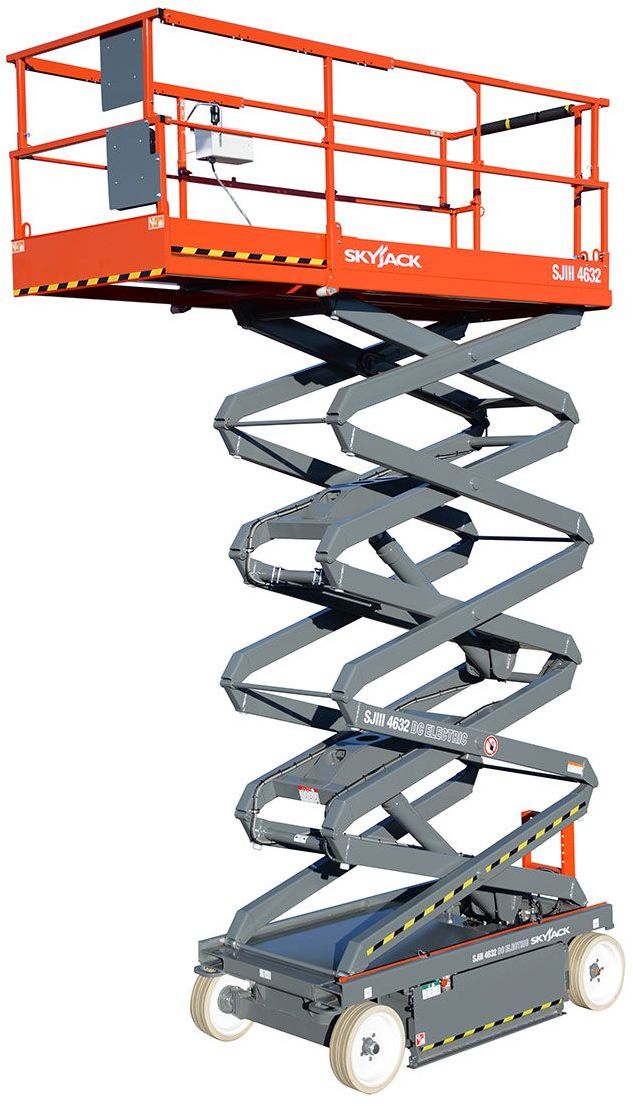

Skyjack SJIII 4632
Browse All Skyjack or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 7.55 in (2300 mm) |
| Wheelbase | 5.75 ft in (1750 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Height W/ Rails | 7.22 ft in (2200 mm) |
| Ground Clearance | 3.51 in (89 mm) |
| Height W/O Rails | 6.24 ft in (1900 mm) |
| Turning Radius | 7.78 ft in (2370 mm) |
| Gradeability | 25 % |
Platform
| Max Platform Height | 31.99 ft in (9750 mm) |
| Deck Extension | 48.04 in (1220 mm) |
| Max Working Height | 38 ft in (11580 mm) |
| Max Platform Weight Capacity | 701.07 lb (318 kg) |
| Platform Height - Lowered | 4035.44 ft in (1230 m) |
| Platform Inner Length | 83.86 in (2130 mm) |
| Platform Inner Width | 42.13 in (1070 mm) |
| Lower Time | 49 sec |
| Lift Time | 59 sec |
Engine
| System Voltage | 24 V |
Operational
| Load Capacity | 701.1 lb (318 kg) |
| Operating Weight | 5075.1 lb (2302 kg) |
| Max Speed | 2 mph (3.2 km/h) |
| Tire Size | 16 x 5 x 12 |
| Tire Fill/Type | Solid, N/M |
