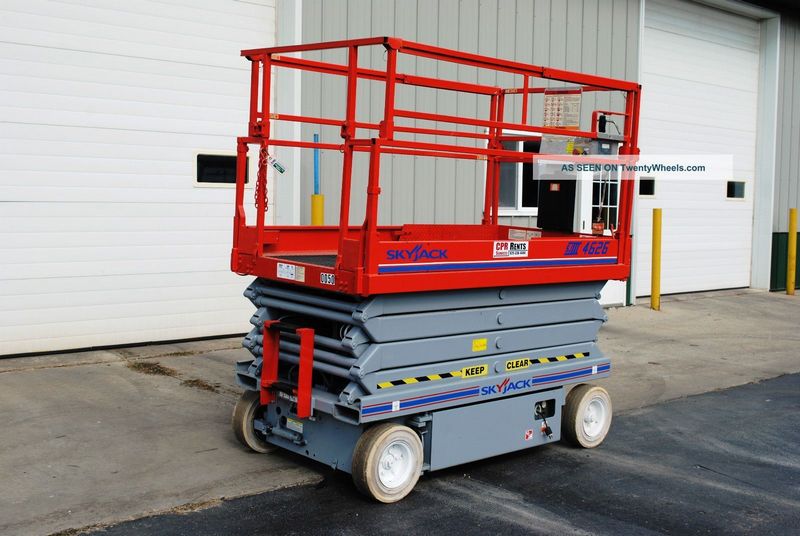

Skyjack SJIII 4626
Browse All Skyjack or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 90.95 in (2310 mm) |
| Wheelbase | 5.75 ft in (1750 mm) |
| Overall Width | 3.84 ft in (1170 mm) |
| Height W/ Rails | 6.89 ft in (2100 mm) |
| Ground Clearance | 3.51 in (89 mm) |
| Height W/O Rails | 5.91 ft in (1800 mm) |
| Turning Radius | 7.88 ft in (2400 mm) |
| Gradeability | 30 % |
Platform
| Max Platform Height | 25.99 ft in (7920 mm) |
| Deck Extension | 47.25 in (1200 mm) |
| Max Working Height | 31.99 ft in (9750 mm) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
| Platform Height - Lowered | 3740.16 ft in (1140 m) |
| Platform Inner Length | 83.86 in (2130 mm) |
| Platform Inner Width | 42.13 in (1070 mm) |
| Lower Time | 32 sec |
| Lift Time | 54 sec |
Engine
| System Voltage | 24 V |
Operational
| Load Capacity | 1000.9 lb (454 kg) |
| Operating Weight | 4700.3 lb (2132 kg) |
| Max Speed | 2 mph (3.2 km/h) |
| Tire Size | 16 x 5 x 12 |
| Tire Fill/Type | Solid, N/M |
