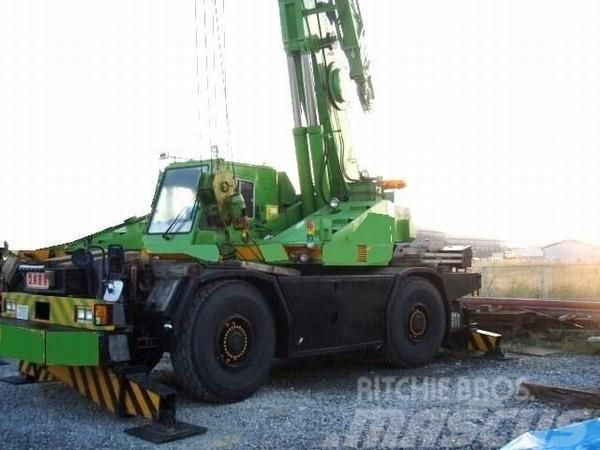

Tadano TR350M-1
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 29.53 ft in (9 m) |
| Max Height @ Max Raise Angle - No Jib | 111.55 ft in (34 m) |
| Max Elevating Angle | 83 degrees |
| Number Of Sections | 5 |
| Swing Speed | 3 rpm |
Dimensions
| Transport Length | 36.04 ft in (10985 mm) |
| Transport Width | 7.45 ft in (2270 mm) |
| Transport Height | 11.75 ft in (3580 mm) |
| Wheelbase | 149.61 in (3800 mm) |
| Width W/ Outriggers Extended | 21.66 ft in (6600 mm) |
| Carrier/Base Length | 25114.83 ft in (7655 m) |
| Upper Structure Tail Swing Radius | 10.24 ft in (3120 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D16 |
| Engine Type | Direct Injection Diesel |
| Gross Power | 212.1 hp (158.2 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 470.2 lb ft (637.5 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 460.5 cu in (7.6 L) |
Operational
| Operating Weight | 64926.2 lb (29450 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 122.9 gal (465 L) |
| Operating Voltage | 24 V |
| Tire Size | 16.00-25-28PR |
Transmission
| Transmission Type | Full powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 28 mph (45 km/h) |
