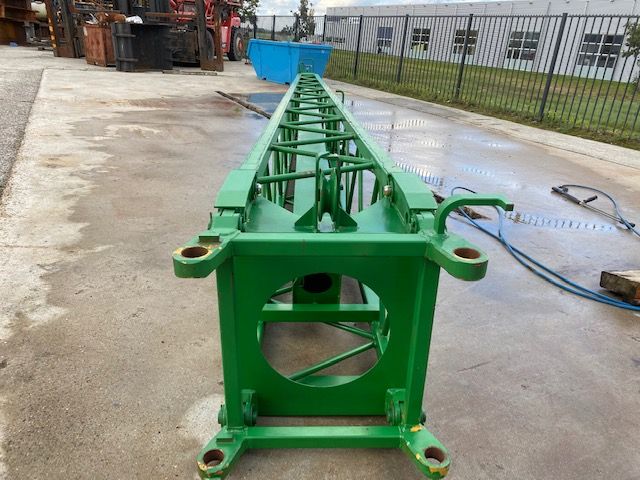

Tadano TR600EXL
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36.09 ft in (11 m) |
| Max Height @ Max Raise Angle - No Jib | 138.46 ft in (42.2 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 132277.35 lb (60000 kg) |
| Swing Speed | 2.4 rpm |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 44.72 ft in (13630 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.41 ft in (3780 mm) |
| Wheelbase | 155.52 in (3950 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier/Base Length | 26673.23 ft in (8130 m) |
| Upper Structure Tail Swing Radius | 13.52 ft in (4120 mm) |
Engine
| Engine Make | Mitsubishi |
| Engine Model | 6D16-TUA |
| Engine Type | Direct injection Diesel |
| Gross Power | 211.9 hp (158 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 520.8 lb ft (706 Nm) |
| Torque Measured @ | 1250 rpm |
| Displacement | 460.5 cu in (7.6 L) |
| Bore | 4.7 in (118 mm) |
| Stroke | 4.6 in (115 mm) |
Operational
| Operating Weight | 102515 lb (46500 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 195.5 gal (740 L) |
| Operating Voltage | 24 V |
| Tire Size | 29.5 x 25 - 22PR |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
