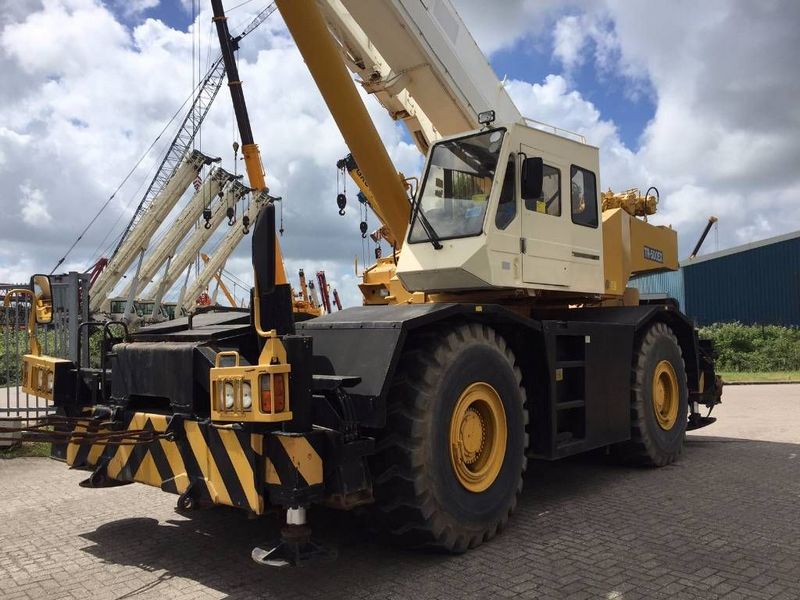

Tadano TR500EX
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35.11 ft in (10.7 m) |
| Max Height @ Max Raise Angle - No Jib | 111.88 ft in (34.1 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 110231.13 lb (50000 kg) |
| Swing Speed | 2.21 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 44.53 ft in (13570 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.47 ft in (3800 mm) |
| Wheelbase | 151.58 in (3850 mm) |
| Width W/ Outriggers Extended | 22.97 ft in (7000 mm) |
| Carrier/Base Length | 26788.06 ft in (8165 m) |
| Upper Structure Tail Swing Radius | 13.59 ft in (4140 mm) |
Engine
| Engine Make | Mitsubishi |
| Engine Model | 6D22 |
| Gross Power | 187.5 hp (139.8 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 499.1 lb ft (676.7 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 680.4 cu in (11.2 L) |
| Aspiration | Direct injection, Water cooled |
Operational
| Operating Weight | 95019.3 lb (43100 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Hydraulic System Fluid Capacity | 195.5 gal (740 L) |
| Cooling System Fluid Capacity | 3 gal (11.2 L) |
| Operating Voltage | 24 V |
| Tire Size | 29.5-25-22 PR |
Transmission
| Max Speed - Forward | 21.8 mph (35 km/h) |
