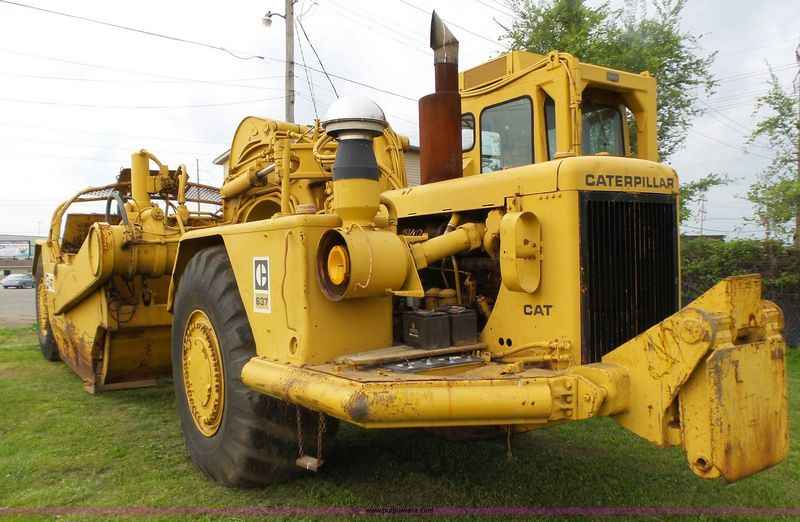

Caterpillar 633D
Browse All Caterpillar or Motor Scraper Models
Contents:
Dimensions
| Overall Length | 47.25 ft in (14400 mm) |
| Overall Width | 13 ft in (3960 mm) |
| Overall Height | 13.92 ft in (4240 mm) |
| Wheelbase | 29.17 ft in (8890 mm) |
Tractor Engine
| Model | 3408 |
| Net Power | 450 hp (335.6 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 1099 cu in (18.1 L) |
Operational
| Fuel Capacity | 250 gal (946.4 L) |
| Tire Size | 33.25x35, 38PR |
Transmission
| Max Speed Forward | 30 mph (48.3 km/h) |
Weights
| Total Operating - Empty | 100817.4 lb (45730 kg) |
Bowl
| Heaped Capacity | 34 yd3 (26 m3) |
| Max Depth Of Cut | 15 in (380 mm) |
| Width Of Cut | 11.5 ft in (3505 mm) |
