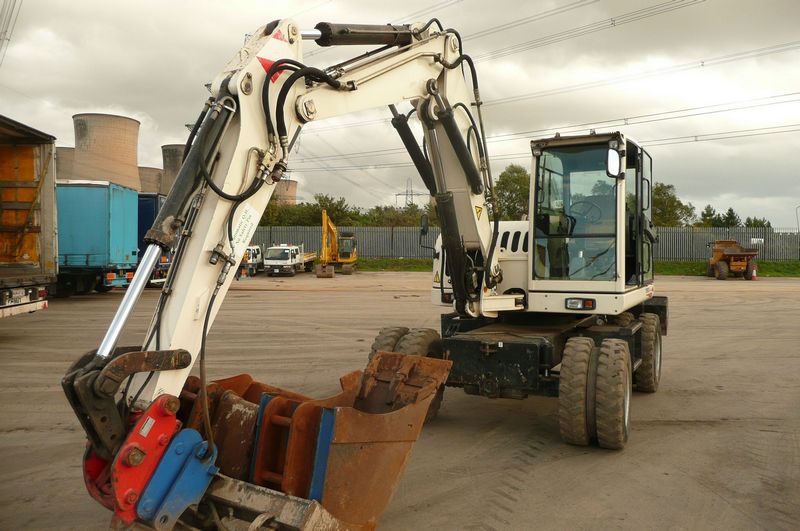

Terex HML42
Browse All Terex or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 27.04 ft in (8240 mm) |
| Max Loading Height | 19.82 ft in (6040 mm) |
| Max Reach Along Ground | 27.24 ft in (8300 mm) |
| Max Vertical Wall Dig Depth | 12.03 ft in (3665 mm) |
| Max Digging Depth | 14.16 ft in (4315 mm) |
| Boom/Stick Option (Mex) 1 | two piece articulated boom with dipperstick 2000mm |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 5.25 ft in (1600 mm) |
| Overall Width | 8.21 in (2500 mm) |
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4 M 2012 |
| Net Power | 91 hp (67.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 244.1 cu in (4 L) |
Operational
| Fuel Capacity | 63.5 gal (240 L) |
| Operating Weight | 24228.9 lb (10990 kg) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Operational Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 4060 psi (27992.7 kPa) |
| Hydraulic Pump Type | axial piston pump with load-sensing |
| Hydraulic Pump Flow Capacity | 52.9 gal/min (200.3 L/min) |
| Oscillating Axle Angle | 26 degrees |
| Max Steering Angle | 30 degrees |
| Tire Size | 9-20 |
Swing Mechanism
| Swing Speed | 10 rpm |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 12.5 mph (20 km/h) |
Buckets
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.6 yd3 (0.5 m3) |
