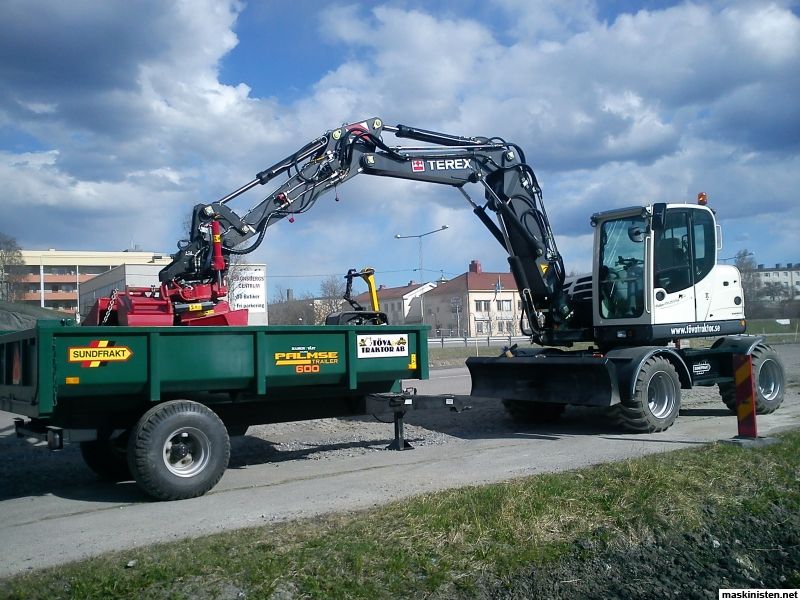

Terex TW110
Browse All Terex or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 22.31 ft in (6800 mm) |
| Shipping Height Of Unit | 9.81 ft in (2990 mm) |
| Max Cutting Height | 27.04 ft in (8240 mm) |
| Max Loading Height | 19.82 ft in (6040 mm) |
| Max Vertical Wall Dig Depth | 12.03 ft in (3665 mm) |
| Max Digging Depth | 14.17 ft in (4315 mm) |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Overall Width | 8.17 in (2500 mm) |
| Ground Clearance | 17 ft in (440 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF4 M 2012 |
| Net Power | 91 hp (67 kw) |
| Displacement | 247 cu in (4 L) |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 63 gal (240 L) |
| Hydraulic System Fluid Capacity | 50 gal (190 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 600 amps |
| Hydraulic System Relief Valve Pressure | 4060 psi (27992.7 kPa) |
| Hydraulic Pump Type | axial piston |
| Hydraulic Pump Flow Capacity | 52.9 gal/min (200 L/min) |
| Oscillating Axle Angle | 13 degrees |
| Max Steering Angle | 30 degrees |
| Tire Size | 9.00-20, 14 PR Twin Tires |
Swing Mechanism
| Swing Speed | 10 rpm |
Transmission
| Transmission Type | Hydrostatic drive with automatic adjustment of drawbar pull and speed |
| Max Travel Speed | 12.4 mph (20 km/h) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.7 yd3 (0.6 m3) |
