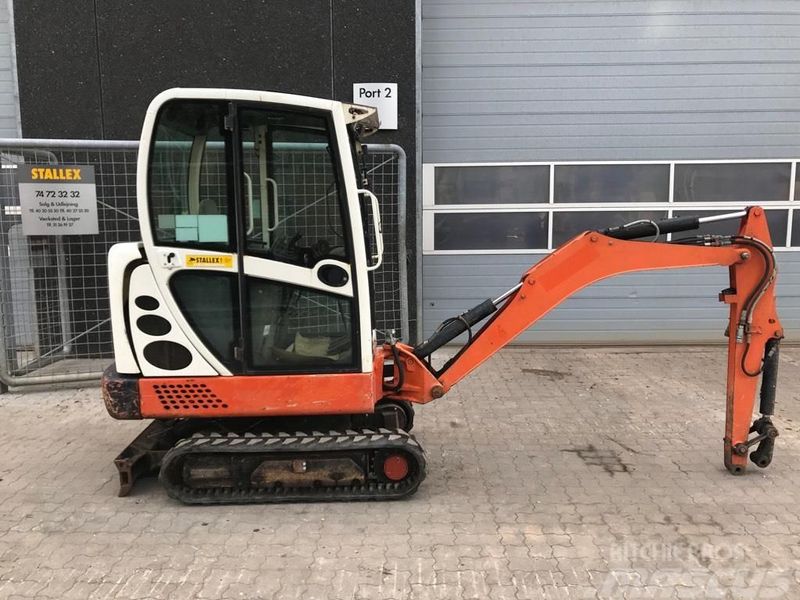

Terex HR2.0
Browse All Terex or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 11.88 ft in (3620 mm) |
| Max Loading Height | 8.54 ft in (2600 mm) |
| Max Reach Along Ground | 13.78 ft in (4200 mm) |
| Max Vertical Wall Digging Depth | 3.15 ft in (960 mm) |
| Max Digging Depth | 7.55 ft in (2300 mm) |
| Boom/Stick Option (Hex) 1 | Monobloc boom Dipperstick 1100mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 12.28 ft in (3740 mm) |
| Max Loading Height | 8.93 ft in (2720 mm) |
| Max Reach Along Ground | 14.34 ft in (4370 mm) |
| Max Vertical Wall Digging Depth | 3.71 ft in (1130 mm) |
| Max Digging Depth | 8.21 ft in (2500 mm) |
| Boom/Stick Option (Hex) 2 | Monobloc boom Dipperstick 1300mm |
Dimensions
| Width To Outside Of Tracks | 3.29 ft in (1000 mm) |
| Ground Clearance | 0.56 ft in (170 mm) |
| Tail Swing Radius | 3.94 ft in (1200 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Max Travel Speed | 2.55 mph (4.1 km/h) |
| Drawbar Pull | 3375 lb (15.02 kN) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3E-W 262 KL |
| Net Power | 18 hp (13.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 58 cu in (1 L) |
| Max Torque | 39.9 lb ft (54 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 4409.3 lb (2000 kg) |
| Fuel Capacity | 8 gal (30 L) |
| Hydraulic System Fluid Capacity | 9.3 gal (35 L) |
| Operational Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 2610 psi (17995.4 kPa) |
| Hydraulic Pump Flow Capacity | 15.4 gal/min (58.3 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
