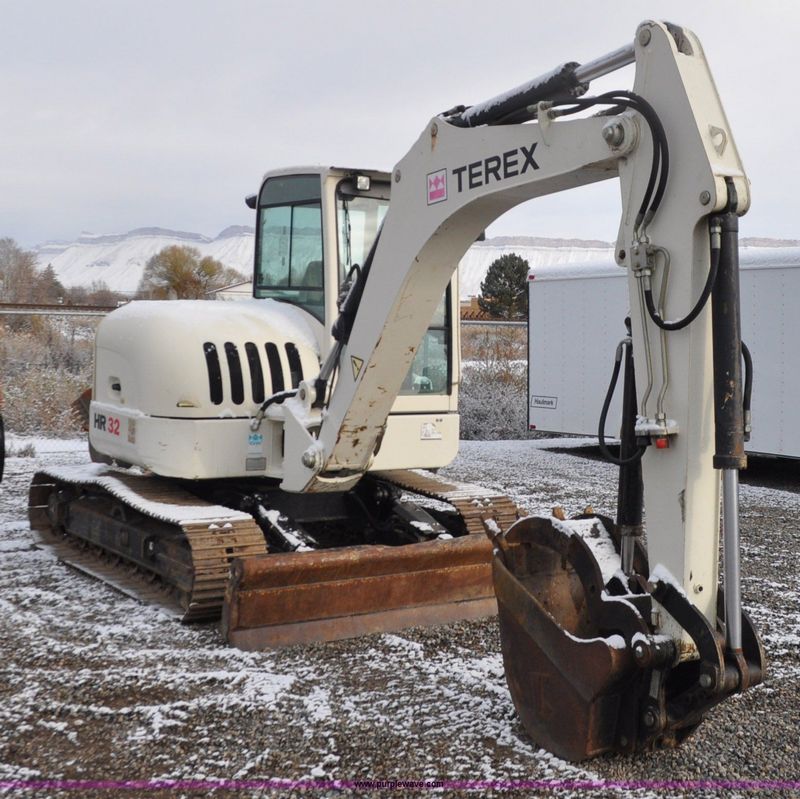

Terex HR32
Browse All Terex or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 20.25 ft in (6170 mm) |
| Max Loading Height | 13.65 ft in (4160 mm) |
| Max Reach Along Ground | 23.63 ft in (7200 mm) |
| Max Vertical Wall Digging Depth | 8.63 ft in (2630 mm) |
| Max Digging Depth | 13.95 ft in (4250 mm) |
| Boom/Stick Option (Hex) 1 | Monoblog boom Dipperstick 2000mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 20.67 ft in (6300 mm) |
| Max Loading Height | 14.08 ft in (4290 mm) |
| Max Reach Along Ground | 24.41 ft in (7440 mm) |
| Max Digging Depth | 14.57 ft in (4440 mm) |
| Max Vertical Wall Digging Depth | 9.19 ft in (2800 mm) |
| Boom/Stick Option (Hex) 2 | Monoblog boom Dipperstick 2200mm |
Dimensions
| Width To Outside Of Tracks | 7.55 ft in (2300 mm) |
| Ground Clearance | 1.34 ft in (408 mm) |
| Height To Top Of Cab | 8.86 ft in (2700 mm) |
| Tail Swing Radius | 3.94 ft in (1200 mm) |
Undercarriage
| Max Travel Speed | 3.24 mph (5.2 km/h) |
| Ground Pressure | 4.41 psi (30.34 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | KHD BF 4 M |
| Net Power | 72 hp (53.7 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 195.3 cu in (3.2 L) |
Operational
| Operating Weight | 16534.7 lb (7500 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Operational Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 4060 psi (27992.7 kPa) |
| Hydraulic Pump Flow Capacity | 41 gal/min (155.3 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
