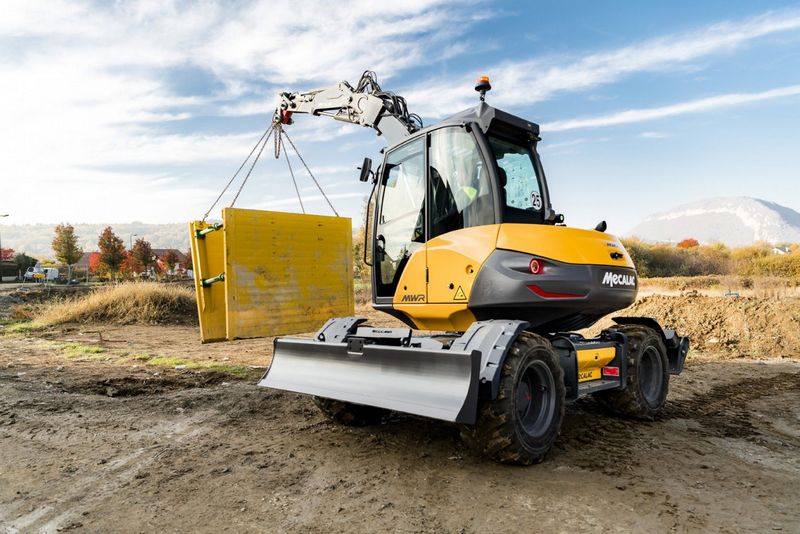

Mecalac 9MWR
Browse All Mecalac or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 14.5 ft in (4418 mm) |
| Shipping Height Of Unit | 9.29 ft in (2829 mm) |
| Max Reach Along Ground | 21.99 ft in (6700 mm) |
| Max Vertical Wall Dig Depth | 6.33 ft in (1928 mm) |
| Max Digging Depth | 11.49 ft in (3500 mm) |
| Boom/Stick Option (Mex) 1 | Standard boom |
| Max Breakout Force | 11240.45 lb (50 kN) |
Dimensions
| Wheelbase | 7.22 ft in (2200 mm) |
| Tail Swing Radius | 4.43 ft in (1350 mm) |
| Overall Width | 90.95 in (2310 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Height To Top Of Cab | 9.29 ft in (2829 mm) |
| Gradeability | 65 % |
Electrical System
| Alternator | 14 V (120 A) |
| Voltage | 12 V V (deletedelete) |
| Starter | 2.6 kW |
| Batteries | 100 Ah / 720 A |
Engine
| Emissions Level | Tier 4 Final Stage IIIB |
| Engine Model | DEUTZ TCD 2.9 L4 |
| Gross Power | 75 hp (56 kw) |
| Cooling System | Water |
| Power Measured @ | 2300 rpm |
| Displacement | 177 cu in (3 L) |
| Torque Measured @ | 1600 rpm |
| Net Torque | 221.3 lb ft (300 Nm) |
Operational
| Operating Weight | 18981.8 lb (8610 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 16.2 gal (61 L) |
| Traction Force | 10835.8 lb (48.2 kN) |
| Hydraulic System Relief Valve Pressure | 4060 psi (27992.7 kPa) |
| Hydraulic Pump Type | Variable displacement pump |
| Hydraulic Pump Flow Capacity | 38.4 gal/min (145 L/min) |
