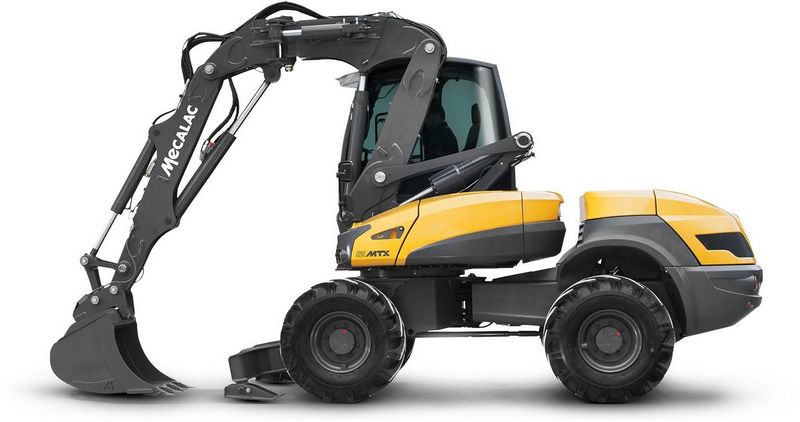

Mecalac 12MTX
Browse All Mecalac or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 10.06 ft in (3064 mm) |
| Shipping Height Of Unit | 15.16 ft in (4619 mm) |
| Max Reach Along Ground | 23.38 ft in (7125 mm) |
| Max Vertical Wall Dig Depth | 7.35 ft in (2240 mm) |
| Max Digging Depth | 13.46 ft in (4100 mm) |
| Boom/Stick Option (Mex) 1 | Boom offset - 1859 mm |
| Max Breakout Force | 13825.75 lb (61.5 kN) |
Dimensions
| Wheelbase | 7.3 ft in (2225 mm) |
| Overall Width | 88.47 in (2247 mm) |
| Ground Clearance | 1.17 ft in (354 mm) |
| Height To Top Of Cab | 10.06 ft in (3064 mm) |
| Gradeability | 78 % |
| Approach Angle | 53 degrees - (deletedelete) |
| Angle Of Departure | 30 degrees |
Electrical System
| Alternator | 95 A |
| Voltage | 12 V V (deletedelete) |
| Starter | 3.2 kW |
| Batteries | 100 Ah |
Engine
| Emissions Level | TIER 4 STAGE IV |
| Engine Model | DEUTZ TCD 3.6L4 |
| Gross Power | 114 hp (85 kw) |
| Cooling System | Water |
| Power Measured @ | 2200 rpm |
| Displacement | 221 cu in (3.7 L) |
| Torque Measured @ | 1600 rpm |
| Net Torque | 339.3 lb ft (460 Nm) |
Operational
| Operating Weight | 21384.9 lb (9700 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Traction Force | 13039 lb (58 kN) |
| Hydraulic System Relief Valve Pressure | 6236.7 psi (43000 kPa) |
| Hydraulic Pump Type | Continuously variable speed |
| Hydraulic Pump Flow Capacity | 48.1 gal/min (182 L/min) |
