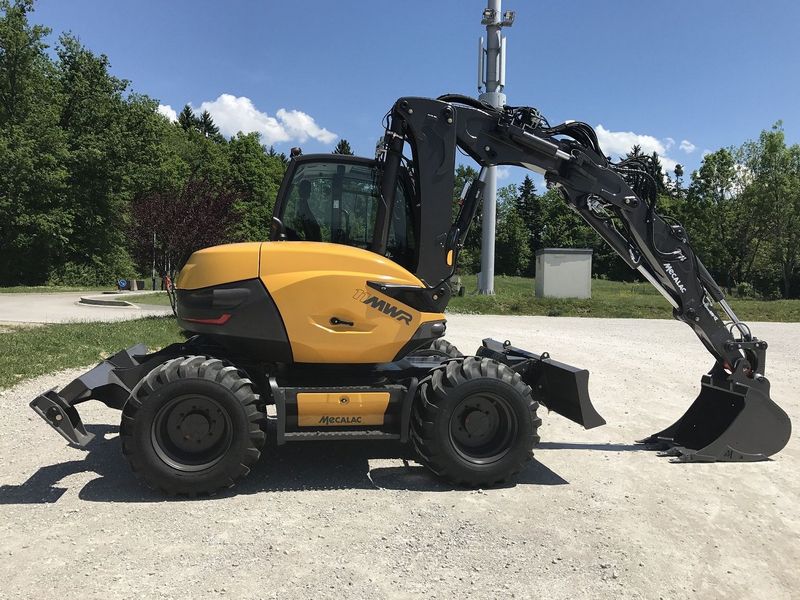

Mecalac 11MWR
Browse All Mecalac or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 15.87 ft in (4836 mm) |
| Shipping Height Of Unit | 9.66 ft in (2944 mm) |
| Max Reach Along Ground | 24.61 ft in (7500 mm) |
| Max Vertical Wall Dig Depth | 6.4 ft in (1949 mm) |
| Max Digging Depth | 12.47 ft in (3800 mm) |
| Boom/Stick Option (Mex) 1 | Standard boom |
| Max Breakout Force | 13488.54 lb (60 kN) |
Dimensions
| Wheelbase | 7.55 ft in (2300 mm) |
| Tail Swing Radius | 4.75 ft in (1445 mm) |
| Overall Width | 98.43 in (2500 mm) |
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.66 ft in (2944 mm) |
| Gradeability | 68 % |
Electrical System
| Alternator | 14 V (120 A) |
| Voltage | 12 V V (deletedelete) |
| Starter | 2.6 kW |
| Batteries | 100 Ah / 720 A |
Engine
| Emissions Level | Tier 4 Final Stage IIIB |
| Engine Model | DEUTZ TCD 3.6 L4 |
| Gross Power | 75 hp (56 kw) |
| Cooling System | Water |
| Power Measured @ | 2200 rpm |
| Displacement | 220 cu in (3.7 L) |
| Torque Measured @ | 1300 rpm |
| Net Torque | 287.7 lb ft (390 Nm) |
Operational
| Operating Weight | 24228.9 lb (10990 kg) |
| Fuel Capacity | 43.6 gal (165 L) |
| Hydraulic System Fluid Capacity | 20.4 gal (77 L) |
| Traction Force | 10835.8 lb (48.2 kN) |
| Hydraulic System Relief Valve Pressure | 4350 psi (29992.2 kPa) |
| Hydraulic Pump Type | Variable displacement pump |
| Hydraulic Pump Flow Capacity | 43.6 gal/min (165 L/min) |
