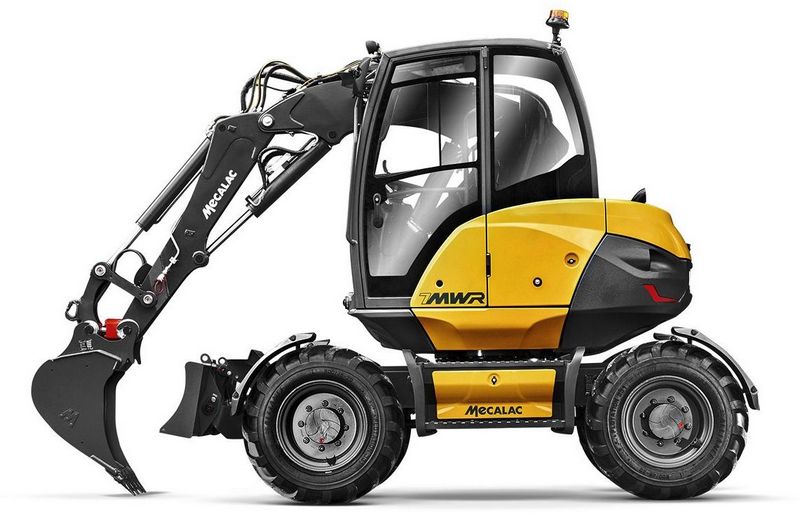

Mecalac 7MWR
Browse All Mecalac or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 12.24 ft in (3730 mm) |
| Shipping Height Of Unit | 9.24 ft in (2816 mm) |
| Max Reach Along Ground | 20.41 ft in (6220 mm) |
| Max Vertical Wall Dig Depth | 5.44 ft in (1657 mm) |
| Max Digging Depth | 9.95 ft in (3030 mm) |
| Boom/Stick Option (Mex) 1 | Standard boom |
| Max Breakout Force | 9666.79 lb (43 kN) |
Dimensions
| Wheelbase | 6.89 ft in (2100 mm) |
| Tail Swing Radius | 4.26 ft in (1296 mm) |
| Overall Width | 85.83 in (2180 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Height To Top Of Cab | 9.24 ft in (2816 mm) |
| Gradeability | 60 % |
Electrical System
| Alternator | 14 V (120 A) |
| Voltage | 12 V V (deletedelete) |
| Starter | 2.6 kW |
| Batteries | 100 Ah / 720 A |
Engine
| Emissions Level | Tier 4 Final Stage IIIB |
| Engine Model | DEUTZ TCD 2.9 L4 |
| Gross Power | 75 hp (56 kw) |
| Cooling System | Water |
| Power Measured @ | 2300 rpm |
| Displacement | 177 cu in (3 L) |
| Torque Measured @ | 1600 rpm |
| Net Torque | 221.3 lb ft (300 Nm) |
Operational
| Operating Weight | 16171 lb (7335 kg) |
| Fuel Capacity | 28.6 gal (108 L) |
| Hydraulic System Fluid Capacity | 14.8 gal (56 L) |
| Traction Force | 8452.9 lb (37.6 kN) |
| Hydraulic System Relief Valve Pressure | 4060 psi (27992.7 kPa) |
| Hydraulic Pump Type | Variable displacement pump |
| Hydraulic Pump Flow Capacity | 26.5 gal/min (100 L/min) |
