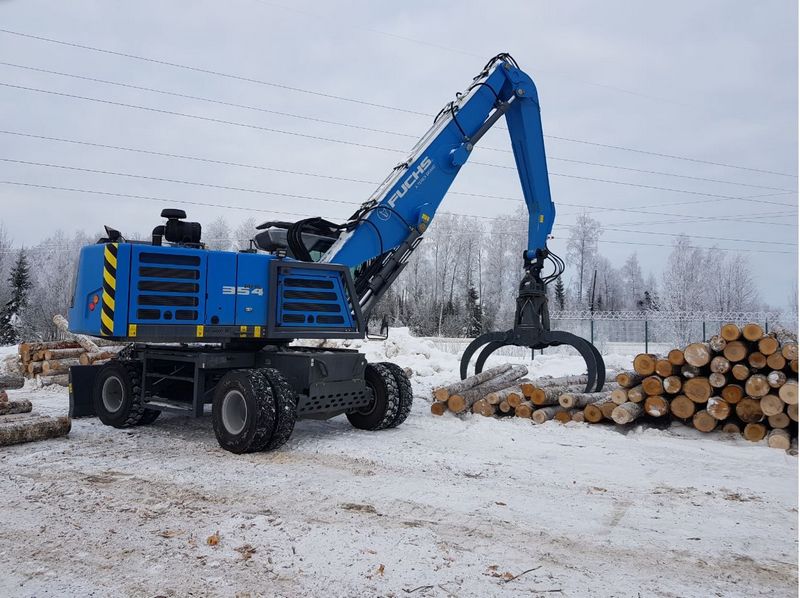

Fuchs MHL354
Browse All Fuchs or Material Handler Models
Contents:
Dimensions
| Wheelbase | 10.1 ft in (3078.48 mm) |
| Overall Height | 12 ft in (3657.6 mm) |
| Overall Length | 20.11 ft in (6129.53 mm) |
| Overall Width | 10.11 ft in |
| Turning Radius | 18.05 ft in (5500 mm) |
Electrical System
| Alternator | 28 V / 100 A |
| Starter | 24 V / 4.0 kW |
| Batteries | 2 × 12 V / 100 Ah / 760 A (according to EN) |
| Operation Voltage | 24 V |
| Lighting | 1 × H3 headlamp on uppercarriage 1 × H3 headlamp on cab floor rear marker lights and flashers: optional additional working floodlights H3 / LED / XENON |
Engine
| Air Filter Type | Two stage filter with safety valve |
| Cooling Method | Coolant and charge air cooling, with temperature controlled fan speed |
| Engine Model | Deutz TCD 6.1 L6 |
| Engine Type | 4-stoke diesel engine, direct common-rail fuel-injection, turbocharger, controlled exhaust gas recirculation, diesel particulate filter with automatic regeneration |
| Gross Power | 214.6 hp (160 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 372.3 cu in (6.1 L) |
Operational
| Gradeability-Laden | 17 % |
| Operating Weight W/O Attachment | 73600 lb (33384.4 kg) |
| Hydraulic System Fluid Capacity | 174.4 gal (660 L) |
Transmission
| Turning Radius | 18.1 ft in (5.5 m) |
Swing Mechanism
| Swing Speed | 7 rpm |
| Swing Torque | 59005 lb ft (80000 Nm) |
Transmission
| Max Speed | 11.9 mph (19 km/h) |
Hydraulic
| Maximum Operating Pressure | 5148.9 psi (35500 kPa) |
