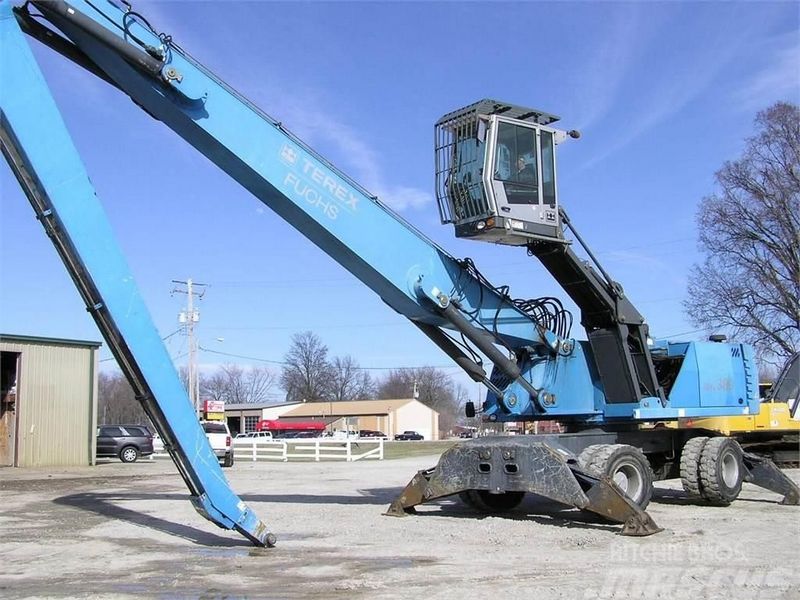

Fuchs MHL380
Browse All Fuchs or Material Handler Models
Contents:
Dimensions
| Wheelbase | 11.1 ft in (3383.28 mm) |
| Ground Clearance | 2.04 ft in (621.8 mm) |
| Overall Height | 12 ft in (3657.6 mm) |
| Overall Length | 22.3 ft in (6797.04 mm) |
| Overall Width | 12.2 ft in |
| Turning Radius | 32.6 ft in (9936.48 mm) |
Electrical System
| Alternator | 28V / 100A |
| Batteries | 2 × 12V / 170Ah / 950A |
| Operation Voltage | 24 V |
| Lighting | 1 × LED spotlight on upper carriage 1 × LED spotlight on cabin floor turn signals and rear side marker lamps |
Engine
| Cooling Method | Water and charge air cooling with temperature controlled fan speed |
| Engine Model | Deutz TCD 12.0 V6 4V |
| Engine Type | 6-cylinder-V-engine |
| Gross Power | 366 hp (273 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 732 cu in (12 L) |
Operational
| Def Tank Capacity | 22.5 gal (85.2 L) |
| Gradeability-Laden | 11 % |
| Operating Weight W/O Attachment | 154322 lb (69999.3 kg) |
| Fuel Capacity | 217 gal (821.5 L) |
| Hydraulic System Fluid Capacity | 182 gal (689 L) |
Transmission
| Turning Radius | 32.6 ft in (10 m) |
Swing Mechanism
| Swing Speed | 6 rpm |
Transmission
| Max Speed | 5 mph (8.1 km/h) |
Hydraulic
| Maximum Operating Pressure | 5221 psi (35997.5 kPa) |
