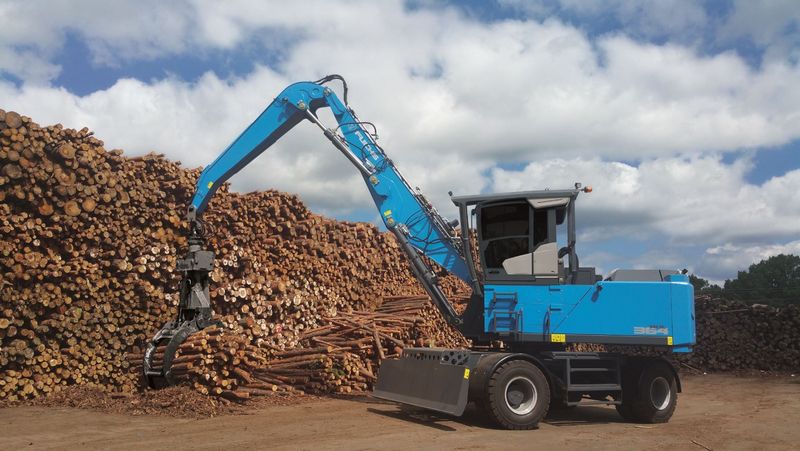

Fuchs MHL364
Browse All Fuchs or Material Handler Models
Contents:
Dimensions
| Wheelbase | 11.1 ft in (3383.28 mm) |
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Overall Height | 15.4 ft in (4693.92 mm) |
| Overall Length | 19.11 ft in (5821.68 mm) |
| Overall Width | 12 Ft |
| Turning Radius | 21.33 ft in (6500 mm) |
Electrical System
| Alternator | 28 V / 100 A |
| Starter | 24 V / 4.0 kW |
| Batteries | 2 × 12 V / 100 Ah /750 A (according to EN) |
| Operation Voltage | 24 V |
| Lighting | 1 × H3 headlamp on uppercarriage 1 × H3 headlamp on cab floor rear marker lights and flashers: optional additional working floodlights H3 / LED / XENON |
Engine
| Air Filter Type | Two-stage filter with safety valve |
| Cooling Method | Coolant and charge air cooling, with temperature controlled fan speed |
| Engine Model | Deutz TCD 7.8 L6 4V |
| Engine Type | 4-stoke diesel engine, direct common-rail fuel-injection, turbocharger, controlled exhaust gas recirculation, diesel particulate filter with automatic regeneration |
| Gross Power | 254.8 hp (190 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 476 cu in (7.8 L) |
Operational
| Operating Weight W/O Attachment | 102000 lb (46266.4 kg) |
| Hydraulic System Fluid Capacity | 148 gal (560 L) |
Transmission
| Turning Radius | 21.4 ft in (6.5 m) |
Swing Mechanism
| Swing Speed | 6 rpm |
| Swing Torque | 67118.2 lb ft (91000 Nm) |
Transmission
| Max Speed | 12.5 mph (20 km/h) |
Hydraulic
| Maximum Operating Pressure | 5221.4 psi (36000 kPa) |
| Pump Type | Adjustable double displacement pump in an open circuit |
