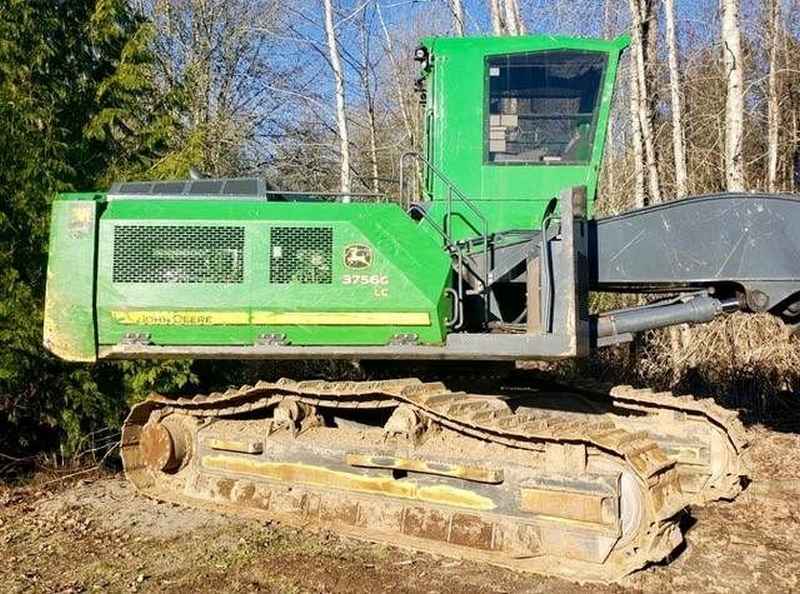

John Deere 3756G
Browse All John Deere or Log Loader Models
Contents:
Dimensions
| Overall Width | 11.91 ft in (3630 mm) |
| Length Of Track On Ground | 14.67 ft in (4470 mm) |
| Track Gauge | 9.59 ft in (2920 mm) |
| Ground Clearance | 2.43 ft in (740 mm) |
| Overall Track Length | 17.92 ft in (5460 mm) |
| Overall Length | 605.12 in (15370 mm) |
| Tailswing Radius | 9.59 ft in (2920 mm) |
| Horizontal Reach | 38.16 ft in (11.63 m) |
| Transport Height | 12.08 ft in (3680 mm) |
| Width Over Tracks | 11.91 ft in (3630 mm) |
Driveline
| Engine Model | PowerTech PSS 9.0L |
| Displacement | 549.3 cu in (9 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 270.9 hp (202 kw) |
| Engine Output - Net | 270.9 hp (202 kw) |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 8 |
| Track Shoe Width | 27.6 in (700 mm) |
Capacities
| Fuel Tank - Diesel | 285.4 gal (1080 L) |
| Hydraulic Tank | 51.6 gal (195 L) |
Performance
| Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Bearing Pressure | 11.6 psi (79.3 kPa) |
| Lift Capacity At Max - Reach | 18518.9 lb (8400 kg) |
| Slew Torque | 88507 lb ft (119999.4 Nm) |
| Pump Flow | 80.4 gal/min (304 L/min) |
| Relief Pressure | 4974.8 psi (34300 kPa) |
| Pump Type | Variable Axial Piston |
| Boost Pressure | 5511.5 psi (38000 kPa) |
Weights
| Operating Weight | 106860.3 lb (48471 kg) |
