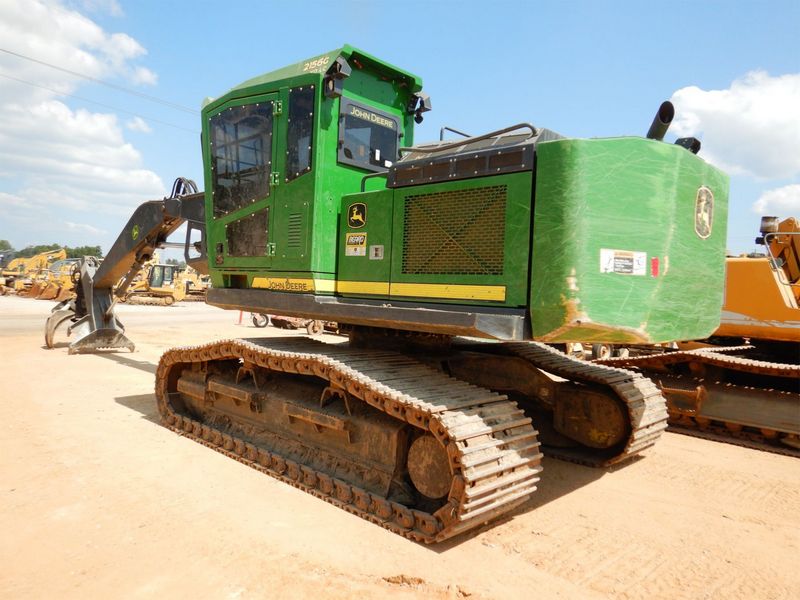

John Deere 2156G
Browse All John Deere or Log Loader Models
Contents:
Dimensions
| Overall Width | 11.52 ft in (3510 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Track Gauge | 9.16 ft in (2790 mm) |
| Ground Clearance | 2.5 ft in (760 mm) |
| Tailswing Radius | 10.18 ft in (3100 mm) |
| Transport Height | 11.91 ft in (3630 mm) |
| Dump Height | 27.01 ft in (8230 mm) |
| Width Over Tracks | 11.52 ft in (3510 mm) |
| Horizontal Reach | 35.77 ft in (10.9 m) |
| Overall Length | 531.11 in (13490 mm) |
| Overall Track Length | 14.6 ft in (4450 mm) |
Driveline
| Engine Model | PowerTech PVS 6.8 L |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 163.7 hp (122 kw) |
| Emission Rating | Tier 4 |
| Engine Output - Net | 163.7 hp (122 kw) |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 8 |
| Track Shoe Width | 27.6 in (700 mm) |
| Track Shoe Width - Option | 3 ft in (900 mm) |
Capacities
| Fuel Tank - Diesel | 211.4 gal (800 L) |
| Hydraulic Tank | 36 gal (136 L) |
Description
| Reference Stick Size | 159.1 in (4040 mm) |
Performance
| Travel Speed | 3 mph (4.7 km/h) |
| Ground Bearing Pressure | 8.6 psi (58.7 kPa) |
| Slew Torque | 54.9 lb ft (74.4 Nm) |
| Pump Flow | 56.1 gal/min (212 L/min) |
| Relief Pressure | 4974.8 psi (34300 kPa) |
| Pump Type | Variable Axial Piston |
| Boost Pressure | 5511.5 psi (38000 kPa) |
Weights
| Operating Weight | 68715.9 lb (31169 kg) |
