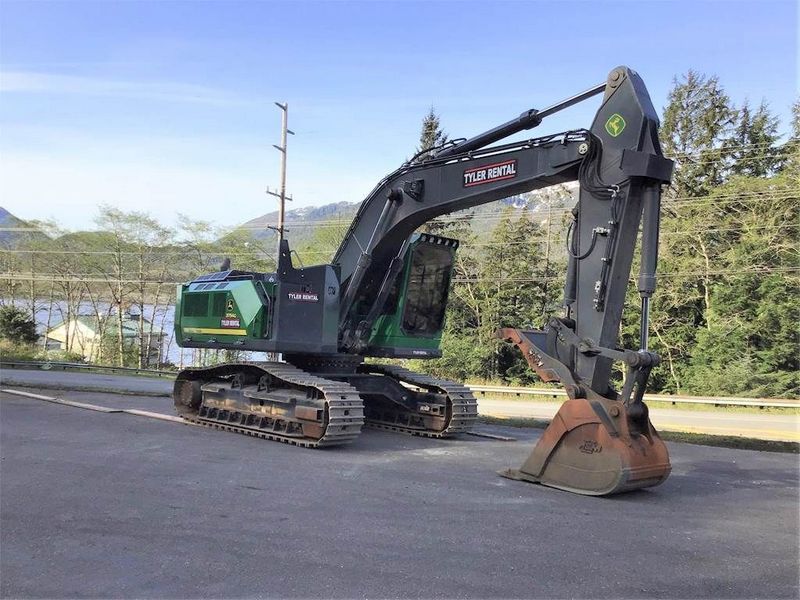

John Deere 3754G
Browse All John Deere or Log Loader Models
Contents:
Dimensions
| Overall Width | 11.91 ft in (3630 mm) |
| Length Of Track On Ground | 13.26 ft in (4040 mm) |
| Track Gauge | 9.59 ft in (2920 mm) |
| Ground Clearance | 2.43 ft in (740 mm) |
| Overall Track Length | 16.25 ft in (4950 mm) |
| Tailswing Radius | 11.85 ft in (3610 mm) |
| Transport Height | 12.5 ft in (3810 mm) |
| Dig Depth Sae | 23.43 ft in (7140 mm) |
| Width Over Tracks | 11.91 ft in (3630 mm) |
| Dump Height | 25 ft in (7620 mm) |
| Horizontal Reach | 36.26 ft in (11.05 m) |
| Overall Length | 438.98 in (11150 mm) |
Driveline
| Engine Model | PowerTech PSS 9.0L |
| Displacement | 549.3 cu in (9 L) |
| Engine Manufacturer | John Deere |
| Engine Output | 270.9 hp (202 kw) |
| Engine Output - Net | 270.9 hp (202 kw) |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 8 |
| Track Shoe Width | 27.6 in (700 mm) |
Capacities
| Fuel Tank - Diesel | 285.4 gal (1080 L) |
| Hydraulic Tank | 51.6 gal (195 L) |
Performance
| Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Bearing Pressure | 9.9 psi (67.6 kPa) |
| Lift Capacity At Max - Reach | 19268.5 lb (8740 kg) |
| Slew Torque | 65279.5 lb ft (88507 Nm) |
| Pump Flow | 80.4 gal/min (304 L/min) |
| Relief Pressure | 4974.8 psi (34300 kPa) |
| Pump Type | Variable Axial Piston |
| Boost Pressure | 5511.5 psi (38000 kPa) |
Weights
| Operating Weight | 95114.1 lb (43143 kg) |
