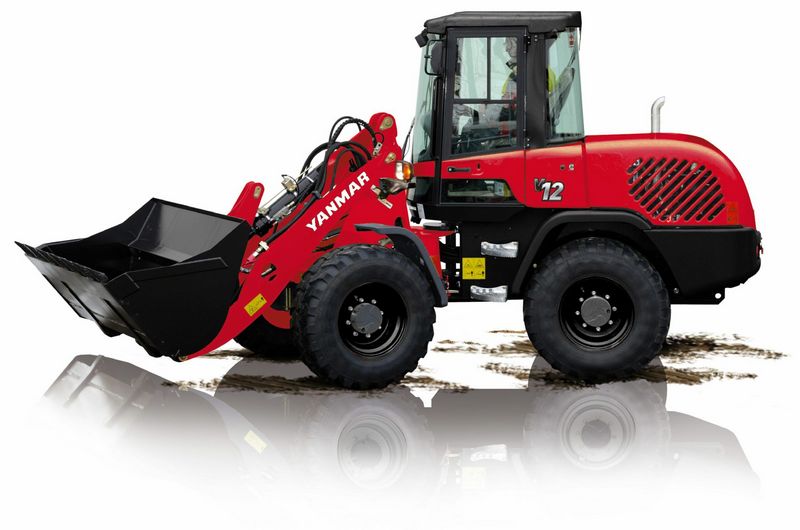

Yanmar V12
Browse All Yanmar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.8 ft in (2680 mm) |
| Bucket Capacity - Heaped | 1.57 yd3 (1.21 m3) |
| Bucket Width | 6.89 ft in (2100 mm) |
| Breakout Force | 13263.73 lb (59 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 17.98 ft in (5480 mm) |
| Width Over Tires | 6.5 ft in (1980 mm) |
| Height To Top Of Cab | 9.13 ft in (2780 mm) |
| Wheelbase | 7.52 ft in (2290 mm) |
| Hinge Pin - Max Height | 11.55 ft in (3520 mm) |
| Reach At Max Lift And Dump | 2.6 ft in (790 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 3.6 L4 |
| Net Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 220 cu in (3.7 L) |
Operational
| Operating Weight | 15432.4 lb (7000 kg) |
| Fuel Capacity | 29 gal (109.8 L) |
| Hydraulic System Fluid Capacity | 25 gal (94.7 L) |
| Engine Oil Fluid Capacity | 2 gal (7.6 L) |
| Cooling System Fluid Capacity | 3.9 gal (14.8 L) |
| Static Tipping Weight | 11023.2 lb (5000 kg) |
| Turning Radius | 15.4 ft in (4680 mm) |
| Operating Voltage | 12 V |
| Tire Size | 405/70 R 20 SPT 9 Dunlop |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 22.4 mph (36 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 20 gal/min (75.8 L/min) |
