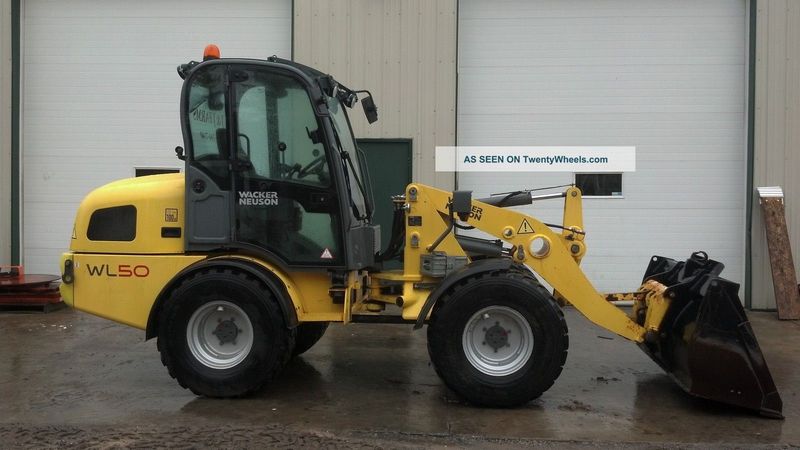

Wacker Neuson WL50
Browse All Wacker Neuson or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.43 ft in (2569 mm) |
| Bucket Capacity - Heaped | 0.99 yd3 (0.75 m3) |
| Breakout Force | 7713 lb (34.31 kN) |
Dimensions
| Length With Bucket On Ground | 17.78 ft in (5417 mm) |
| Width Over Tires | 6.04 ft in (1840 mm) |
| Height To Top Of Cab | 8.54 ft in (2602 mm) |
| Wheelbase | 6.58 ft in (2005 mm) |
| Hinge Pin - Max Height | 10.95 ft in (3336 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M 2011 |
| Gross Power | 75 hp (56 kw) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 10659.4 lb (4835 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Static Tipping Weight | 6869.7 lb (3116 kg) |
| Turning Radius | 12.9 ft in (3908 mm) |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 405/70-18 EM |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3046 psi (21001.5 kPa) |
| Pump Flow Capacity | 17 gal/min (64 L/min) |
| Pump Type | Gear pump |
