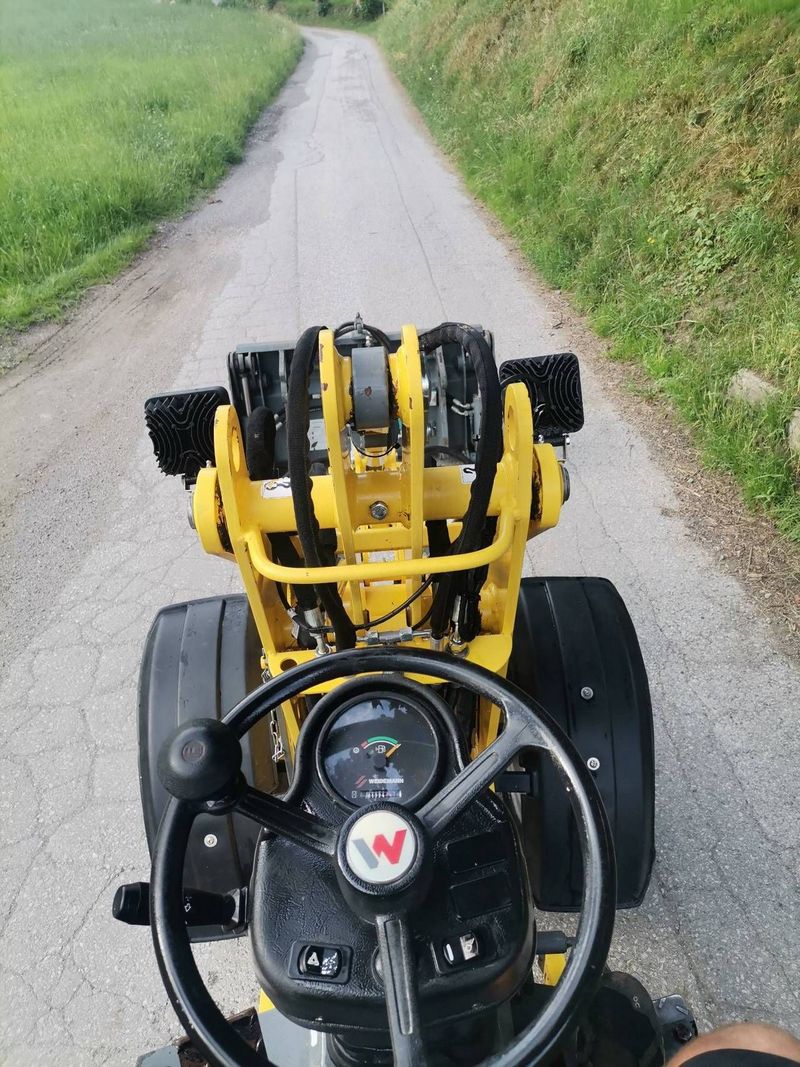

Wacker Neuson WL18
Browse All Wacker Neuson or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 6.73 ft in (2050 mm) |
| Bucket Capacity - Heaped | 0.27 yd3 (0.2 m3) |
| Breakout Force | 2792 lb (12.42 kN) |
Dimensions
| Length With Bucket On Ground | 11.37 ft in (3465 mm) |
| Width Over Tires | 3.47 ft in (1055 mm) |
| Height To Top Of Cab | 6.06 ft in (1845 mm) |
| Wheelbase | 4.42 ft in (1345 mm) |
| Hinge Pin - Max Height | 8.97 ft in (2734 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2351 |
| Engine Model | 403C-11 |
| Gross Power | 24.8 hp (18.5 kw) |
Operational
| Operating Weight | 4056.6 lb (1840 kg) |
| Fuel Capacity | 5.6 gal (21 L) |
| Hydraulic System Fluid Capacity | 4.8 gal (18 L) |
| Static Tipping Weight | 2017.3 lb (915 kg) |
| Turning Radius | 8.4 ft in (2540 mm) |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 27x10.5-15 EM (earthmoving) |
Transmission
| Transmission Type | hydrostatic all-wheel drive with automotive style control |
Hydraulic System
| Relief Valve Setting | 2828 psi (19498.4 kPa) |
| Pump Flow Capacity | 8.7 gal/min (33 L/min) |
| Pump Type | gear pump |
