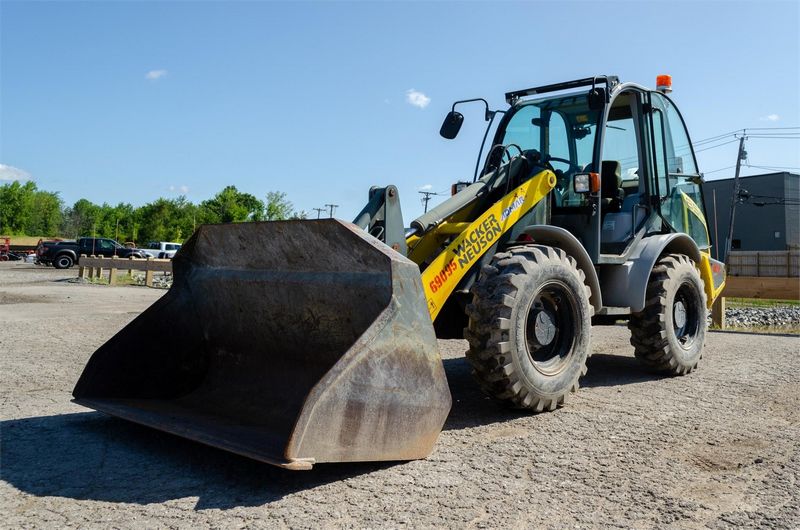

Wacker Neuson 850
Browse All Wacker Neuson or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.21 ft in (2500 mm) |
| Bucket Capacity - Heaped | 1.11 yd3 (0.85 m3) |
| Breakout Force | 7868.3 lb (35 kN) |
Dimensions
| Length With Bucket On Ground | 16.54 ft in (5040 mm) |
| Width Over Tires | 5.65 ft in (1720 mm) |
| Height To Top Of Cab | 8.24 ft in (2510 mm) |
| Wheelbase | 6.3 ft in (1920 mm) |
| Hinge Pin - Max Height | 10.67 ft in (3250 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Gross Power | 60.3 hp (45 kw) |
| Displacement | 220.8 cu in (3.7 L) |
Operational
| Operating Weight | 9920.7 lb (4500 kg) |
| Fuel Capacity | 15.6 gal (59.1 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Static Tipping Weight | 7054.8 lb (3200 kg) |
| Turning Radius | 11.4 ft in (3450 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 12.5 - 20 |
Transmission
| Transmission Type | Continuously variable hydrostatic axial-piston gearbox |
| Max Speed - Forward | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3046 psi (21001.5 kPa) |
| Pump Flow Capacity | 19.6 gal/min (74 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.7 sec |
| Pump Type | Gear pump |
