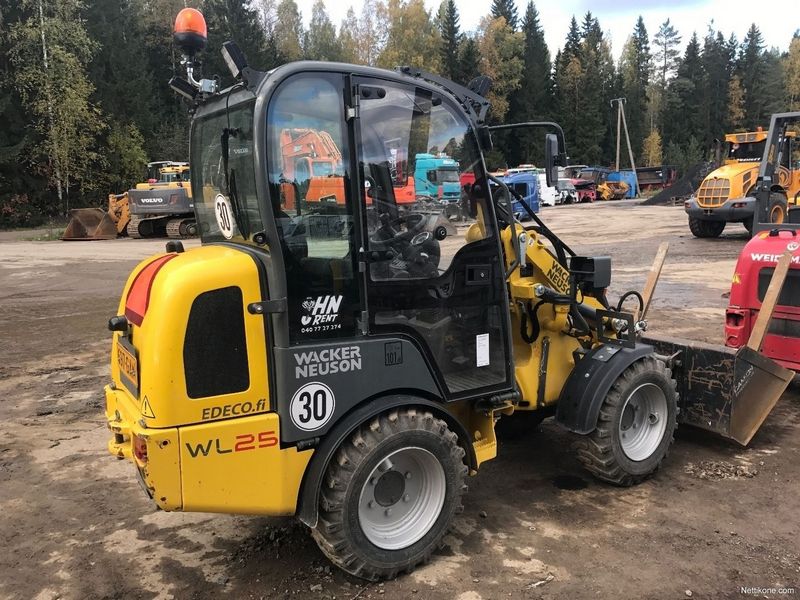

Wacker Neuson WL25
Browse All Wacker Neuson or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 6.72 ft in (2047 mm) |
| Bucket Capacity - Heaped | 0.46 yd3 (0.35 m3) |
| Breakout Force | 4471 lb (19.89 kN) |
Dimensions
| Length With Bucket On Ground | 13.41 ft in (4087 mm) |
| Width Over Tires | 3.97 ft in (1210 mm) |
| Height To Top Of Cab | 7.25 ft in (2208 mm) |
| Wheelbase | 5.29 ft in (1612 mm) |
| Hinge Pin - Max Height | 9.39 ft in (2862 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 404 C-15 |
| Gross Power | 33 hp (24.7 kw) |
Operational
| Operating Weight | 5555.7 lb (2520 kg) |
| Fuel Capacity | 11.9 gal (45 L) |
| Hydraulic System Fluid Capacity | 7.2 gal (27 L) |
| Static Tipping Weight | 3584.8 lb (1626 kg) |
| Turning Radius | 9.6 ft in (2912 mm) |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 10 x 16.5 EM |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 2683 psi (18498.7 kPa) |
| Pump Flow Capacity | 11.9 gal/min (45 L/min) |
| Pump Type | Gear pump |
