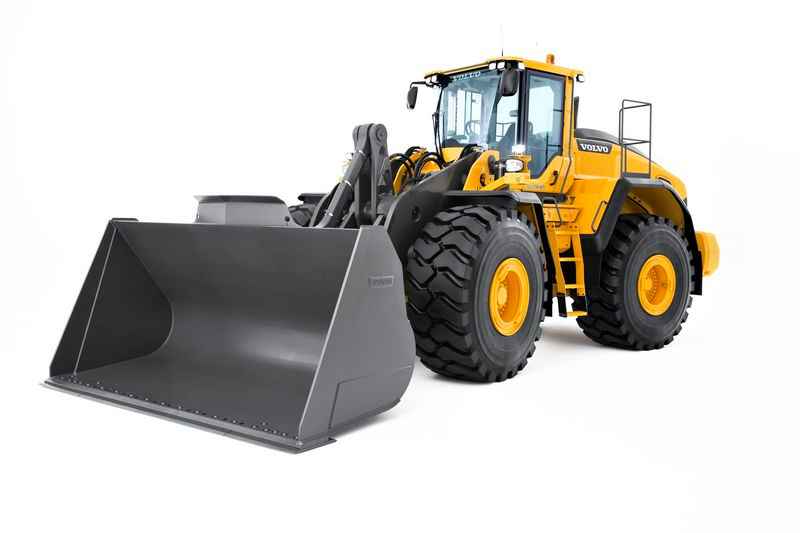

Volvo L260H
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 67959.74 lb (302.3 kN) |
Dimensions
| Ground Clearance | 1.97 ft in (600 mm) |
| Length With Bucket On Ground | 30.92 ft in (9423 mm) |
| Width Over Tires | 9.25 ft in (2819 mm) |
| Height To Top Of Cab | 11.75 ft in (3581 mm) |
| Wheelbase | 11.5 ft in (3505 mm) |
| Hinge Pin - Max Height | 14.84 ft in (4521 mm) |
| Reach At Max Lift And Dump | 5.59 ft in (1702 mm) |
Steering System
| Working Pressure | 26 MPa, 260 bar |
| Articulation Angle | 37 degrees |
| Stroke | 1.8 ft in (525 mm) |
| Steering Cylinders | 2 |
| Cylinder Bore | 3.6 in (90 mm) |
| Rod Diameter | 2.4 in (60 mm) |
| Maximum Flow | 53.4 gal/min (202 L/min) |
Hydraulic Cycle Times (Unloaded)
| Lift | 7.1 sec |
| Lower | 4.1 sec |
| Tilt | 1.9 sec |
| Total Cycle Time | 13.1 sec |
Electrical System
| Battery Capacity | 2 x 170 Ah |
| Cold Cranking Capacity | 1000 A |
| Alternator Rating | 2280/80 (W/A) |
| Starter Motor Output | 9.4 hp (7 kw) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 12 V |
Engine
| Number Of Cylinders | 6 |
| Engine Model | Volvo D13J |
| Net Power | 414 hp (308.8 kw) |
| Gross Power | 416 hp (310.3 kw) |
| Power Measured @ | 1500 rpm |
| Max Torque | Gross - 2343 Nm, Net - 2328 Nm |
| Displacement | 781.2 cu in (12.8 L) |
| Torque Measured @ | 1100 rpm |
| Aspiration | Turbocharged |
Drive Train
| Torque Multiplication, Stall Ratio | 2.02:1 |
| Transport Speed, Maximum | 22.7 mph (36.6 km/h) |
| Transmission | Volvo HTL310 |
Operational
| Def Tank Capacity | 8.2 gal (31 L) |
| Fuel Capacity | 96.7 gal (366 L) |
| Hydraulic System Fluid Capacity | 59.8 gal (226 L) |
| Engine Oil Fluid Capacity | 13.3 gal (50 L) |
| Cooling System Fluid Capacity | 14.6 gal (55 L) |
| Transmission Fluid Capacity | 12.7 gal (48 L) |
Axles
| Rear Axle Oscillation | 15 degrees |
| Axle Oil Front | 20.7 gal (78 L) |
| Axle Oil Rear | 21.2 gal (80 L) |
Hydraulic System
| Working Pressure | Pump 1 - 29 MPa, Pump 2 - 31 MPa, Pump 3 - 25 MPa |
| Engine Speed | 1900 rpm |
Axles
| Front | Volvo AWB 50B |
| Rear | Volvo AWB 41 |
